Roland LPK-1, STK-1 and BAK-1 Kit

Description

In addition to the familiar Ibanez built, Roland-branded guitars like the G-303 and G-808, there were a number of guitars sold by third party manufacturers with Roland electronics. The guitars contained either the Roland LPK-1 or STK-1 kit. These kits were also available separately, designed to be installed by a professional technician. Installation is not an easy task, since installing the kits require extensive routing inside the body of the guitar. The GK-1 is a simple alternative that does not involve the extensive wood working, but the GK-1 saves on space by eliminating modulation control and other features.

Of the two kits, the most common one is the STK-1 kit. This kit was built around the later generation G-707 electronics card. The STK-1 is more popular because it is a smaller kit, and requires less space in the guitar to install. The STK-1 does not have the hex fuzz circuitry, and this saves a lot of space. As far as I can tell, the Gibson Les Paul model is the only guitar with hex fuzz. You can almost tell by visual inspection which kit is installed in a guitar. The STK-1 has a tightly spaced pattern of filter knob, resonance, mode and LFO switch typical of the Roland G-707. The LPK-1 kit has the controls spread in a wider pattern.

The bass version of this kit is the BAK-1. Like the STK-1, the electronics in the BAK-1 are taken from the last Roland guitar series, in this case the G-77 bass. I have never actually seen one of these kits, except in an ebay auction. I cannot find any additional information on the BAK-1. For more detailed information on the LPK-1 and STK-1, scroll to the bottom of the page and use the download link to read the LPK-1/STK-1 installation manual.


Roland LPK-1 "Les Paul" guitar retrofit kit.	Roland STK-1 "Strat" guitar retrofit kit.	Roland BAK-1 "Bass" guitar retrofit kit.

LPK-1 Kit Details:

Divided Pickup #610

Pre-Amp Board LPK-1 (G-303, G-505, G-808)

Connector Holder

Rear Cover

4 Knobs (Large) 2 Knobs (Small)

Touch PLate (with vinyl wire)

Bushing nut (Bushing M3)

24P Connector 2324M-K with Lock Shell 24 L1

Jack SG-7713

Binding screw M3 x 10 (2), Oval-headed screw 3 x 20 mm (2), Self-tapping screw (flat-headed) (2) 6 x 10 mm, flat-headed screw 3 x 10 mm (4)

Washer M3 (4), lock nut M3 (4), Volume Washer (6), Volume Nut (6)

Spring 0.6 x 3.2 x 16 mm (2)

Jack washer

Shielded wire

Vinyl wire (black)

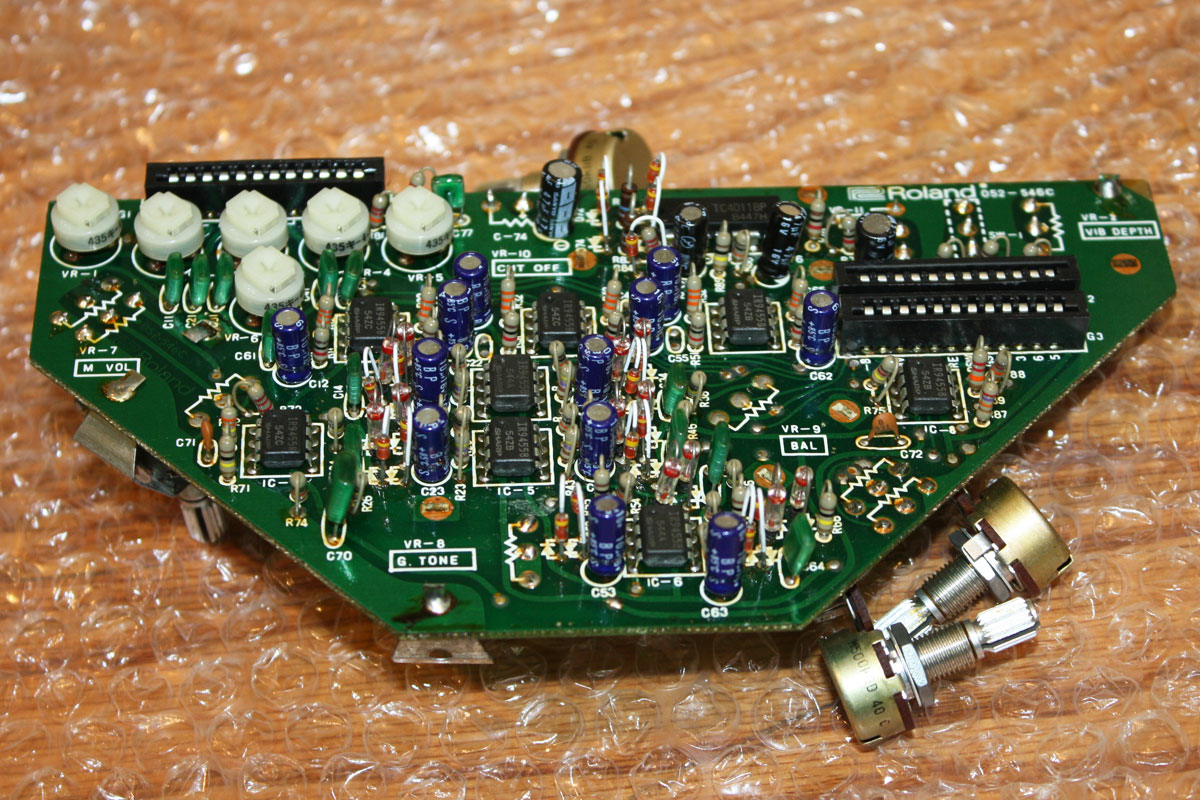

Divided Pickup #610	LPK-1 Pre-Amp Board, Same as G-303/505/808	LPK-1 Pre-Amp Board, Same as G-303/505/808

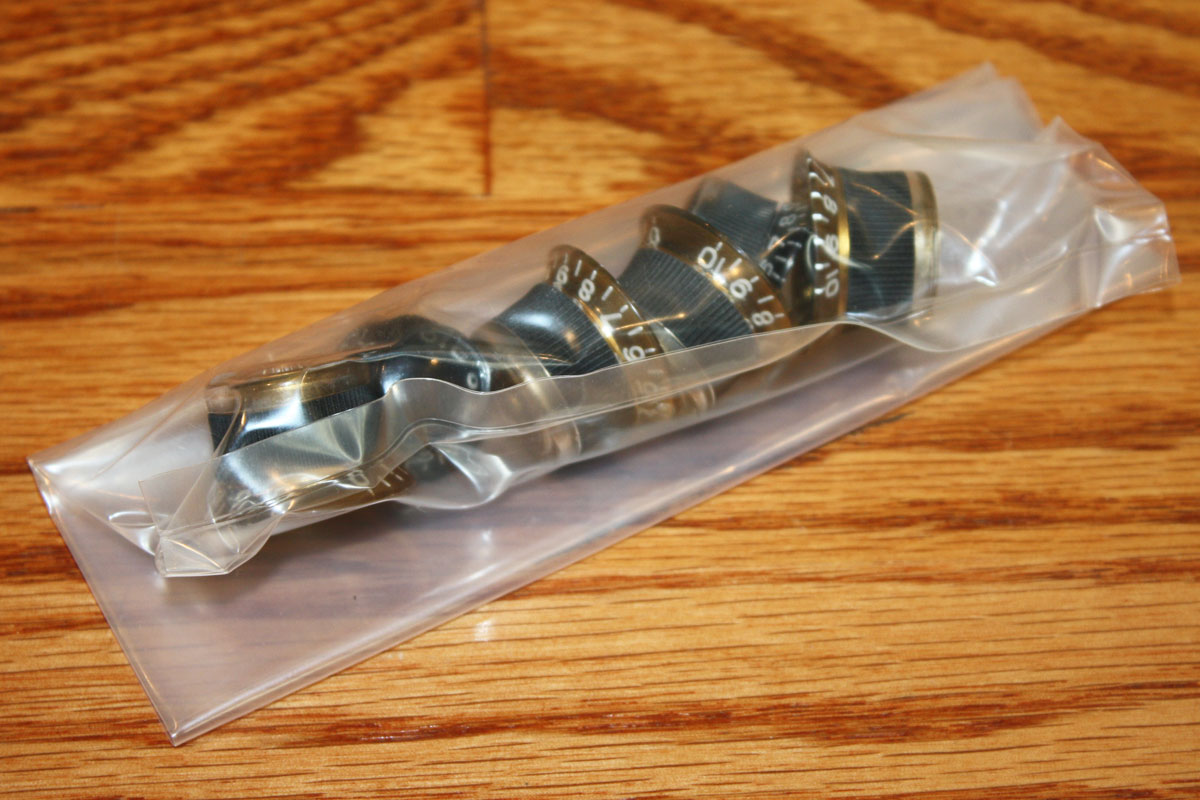

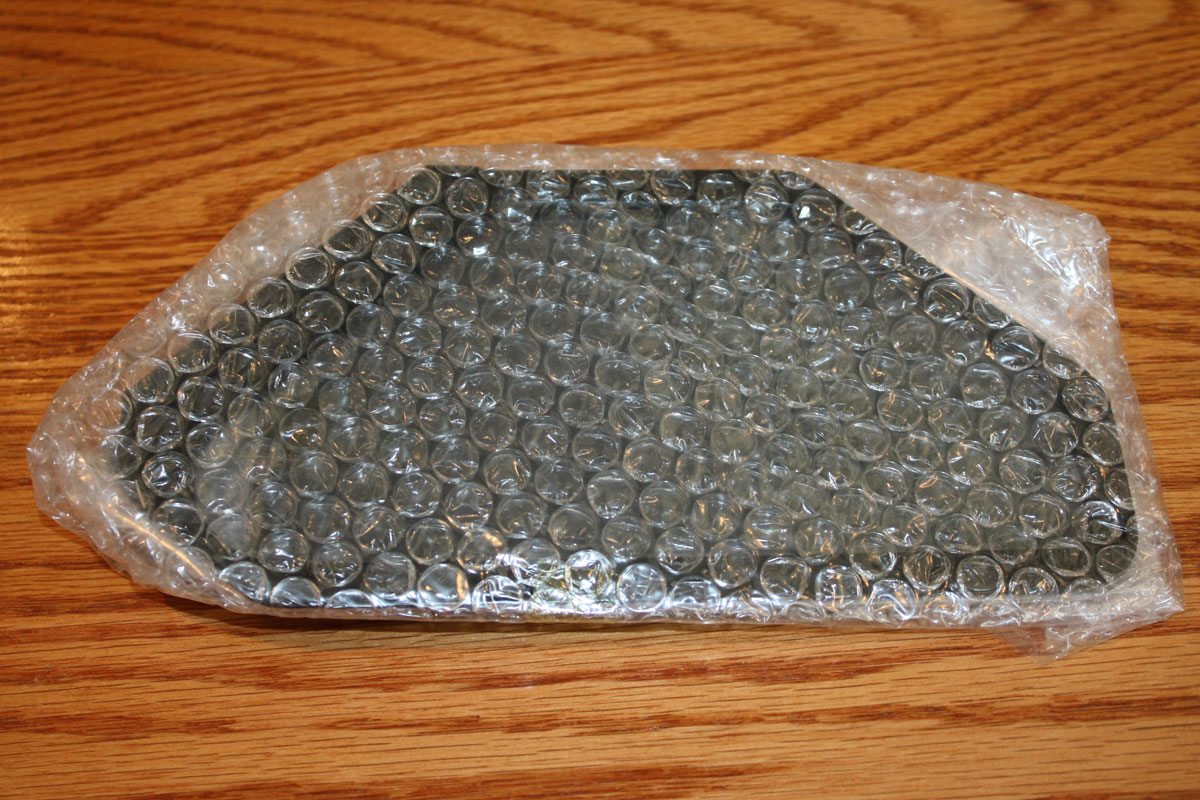

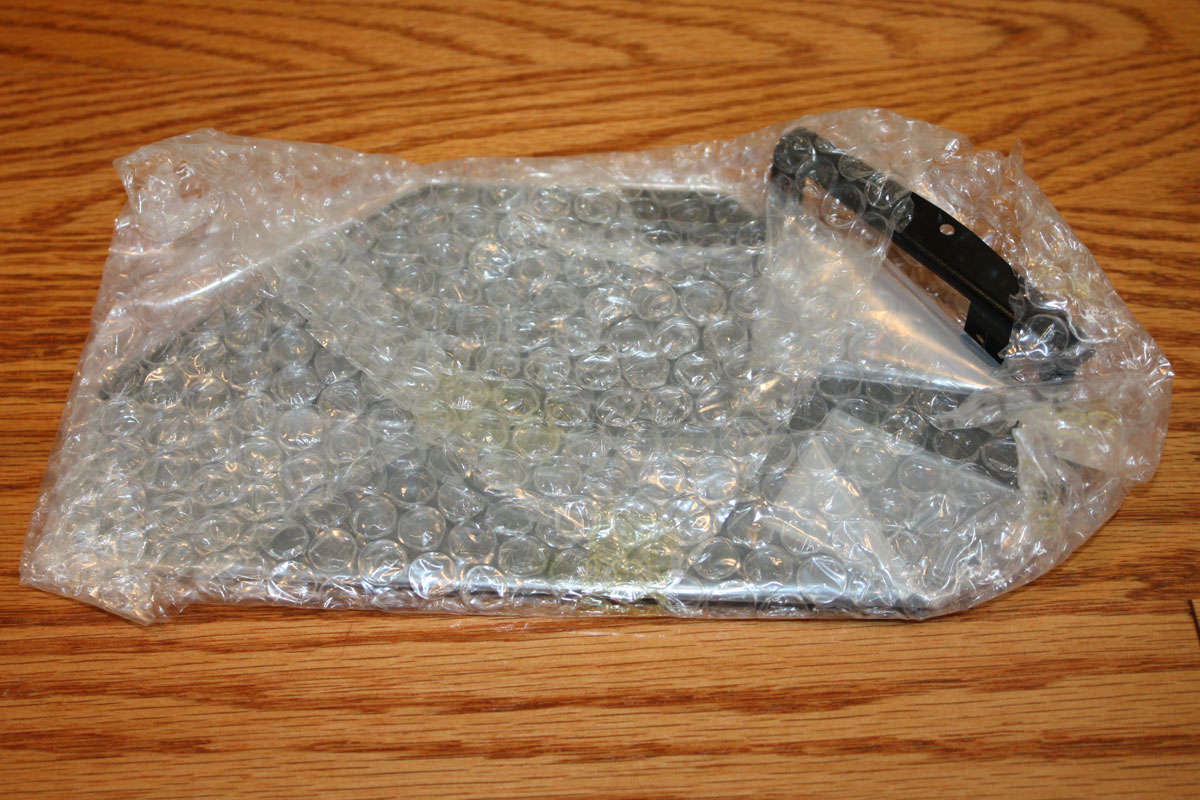

Rear Cover and Installation Frame	Rear Cover and Installation Frame	6 Original Roland Controls Knobs, 4 large, 2 small

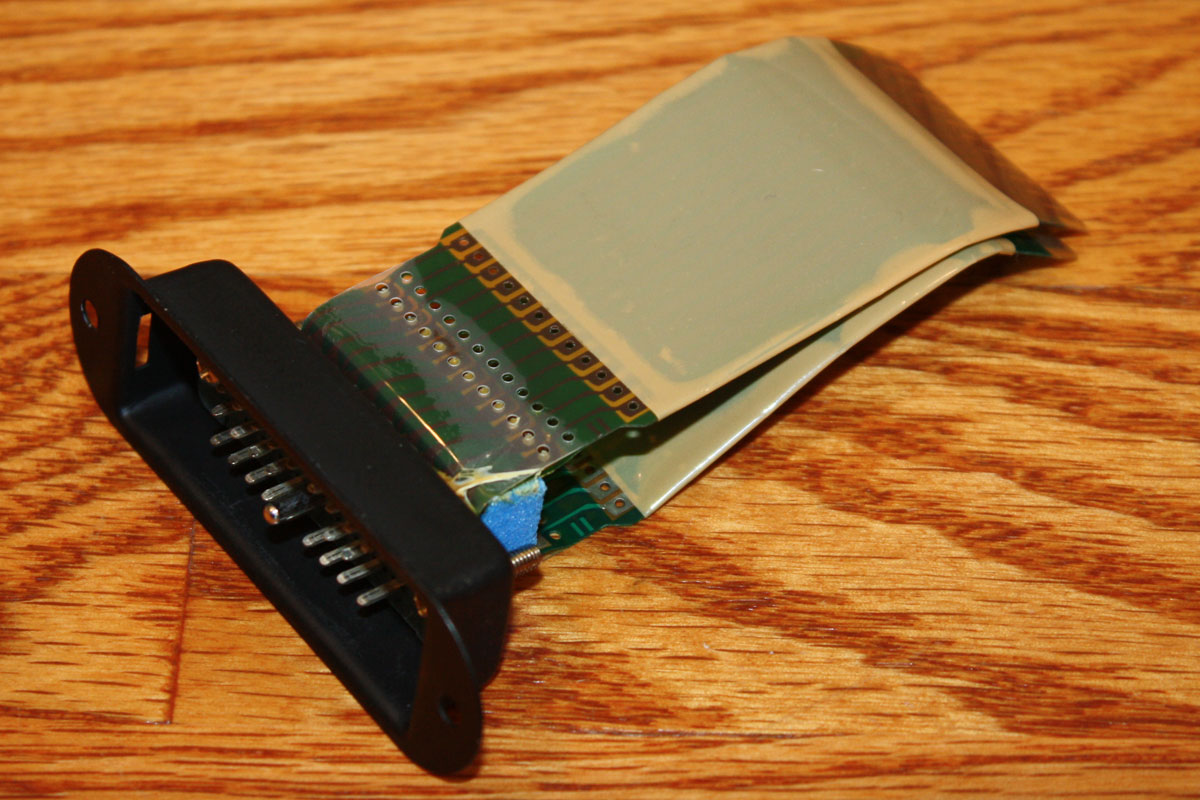

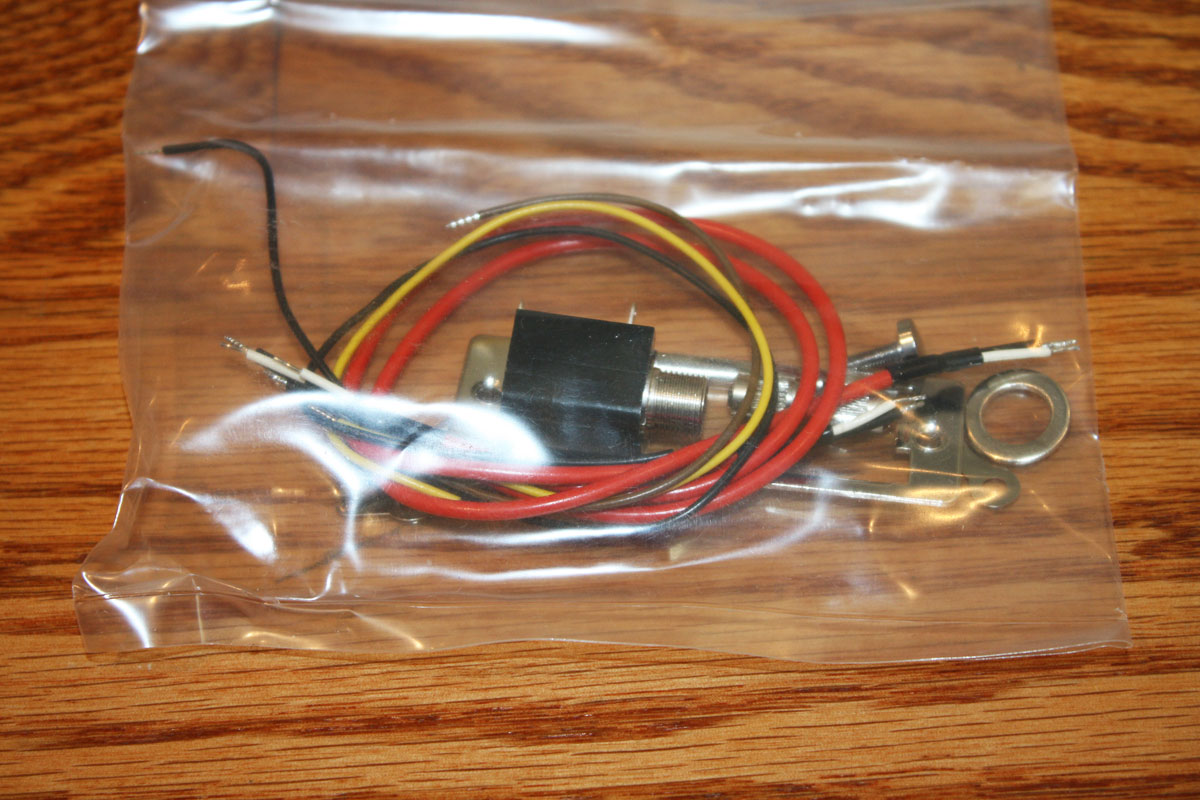

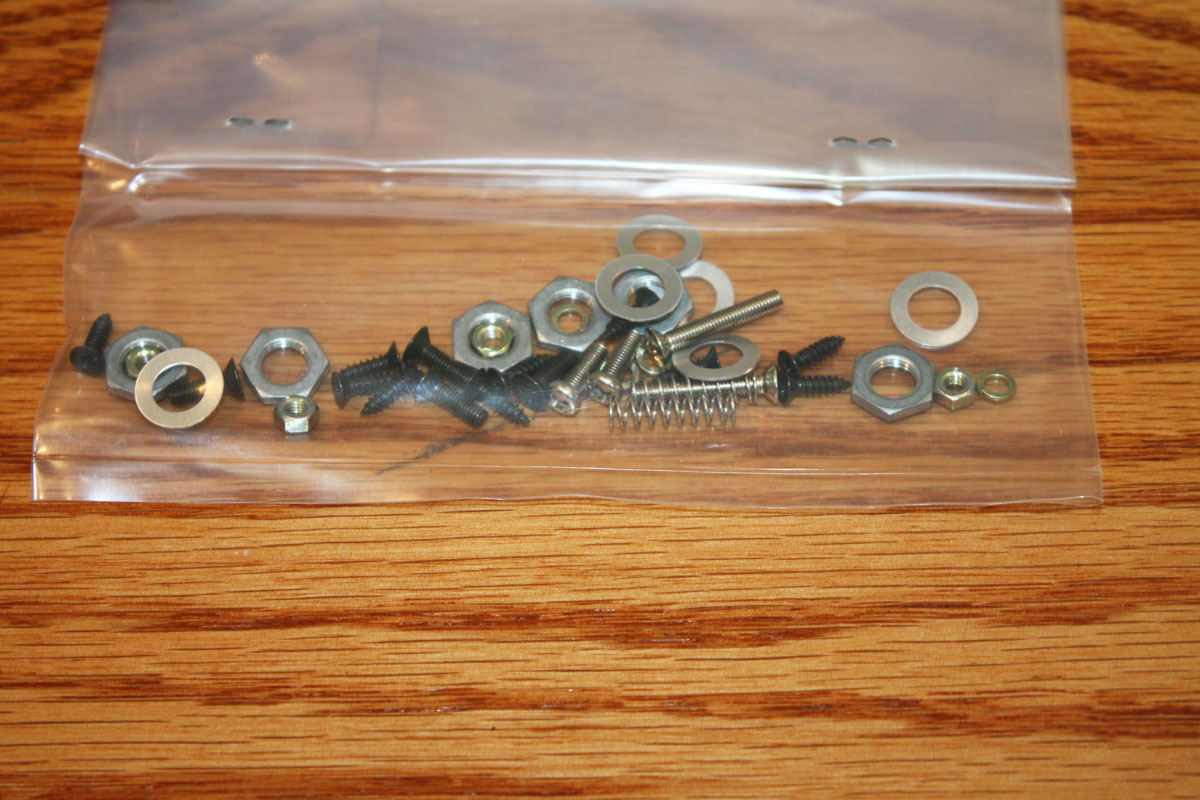

Output jack, various mounting hardware, etc.	Washers, lock nuts, springs, screws, etc.	24P Connector 2324M-K with Shell

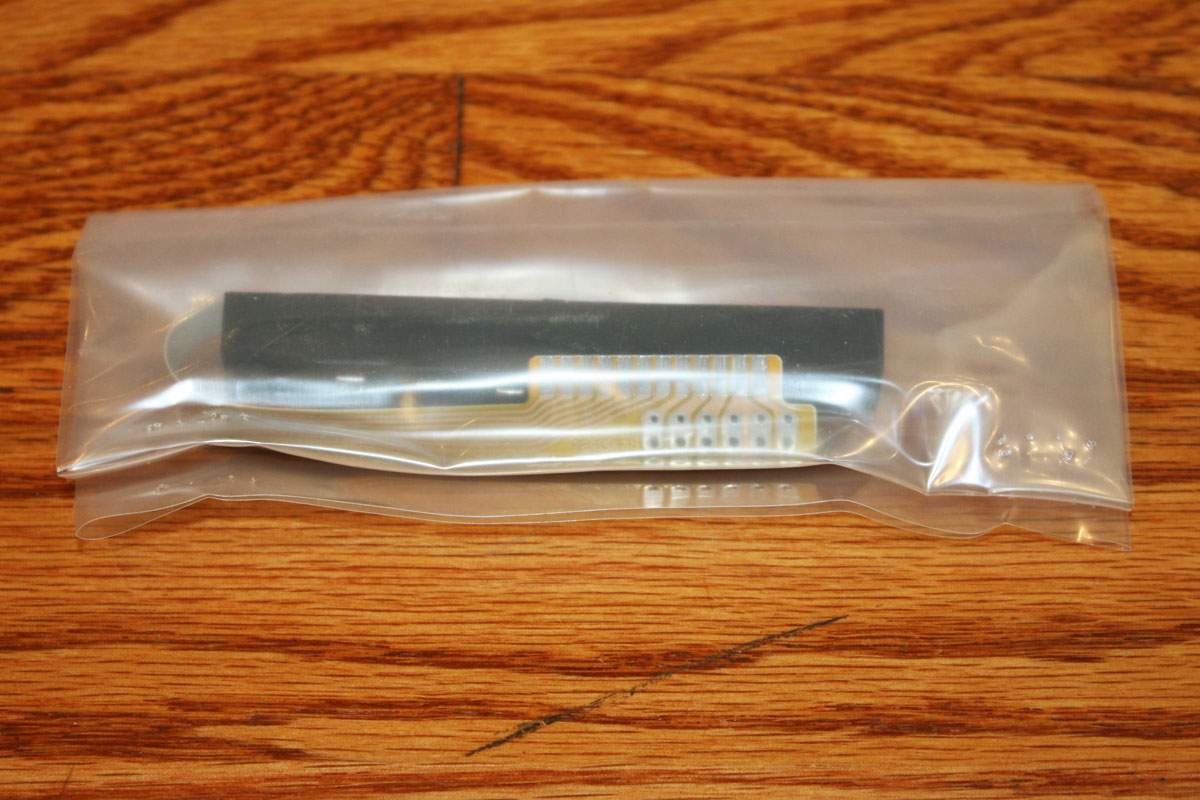

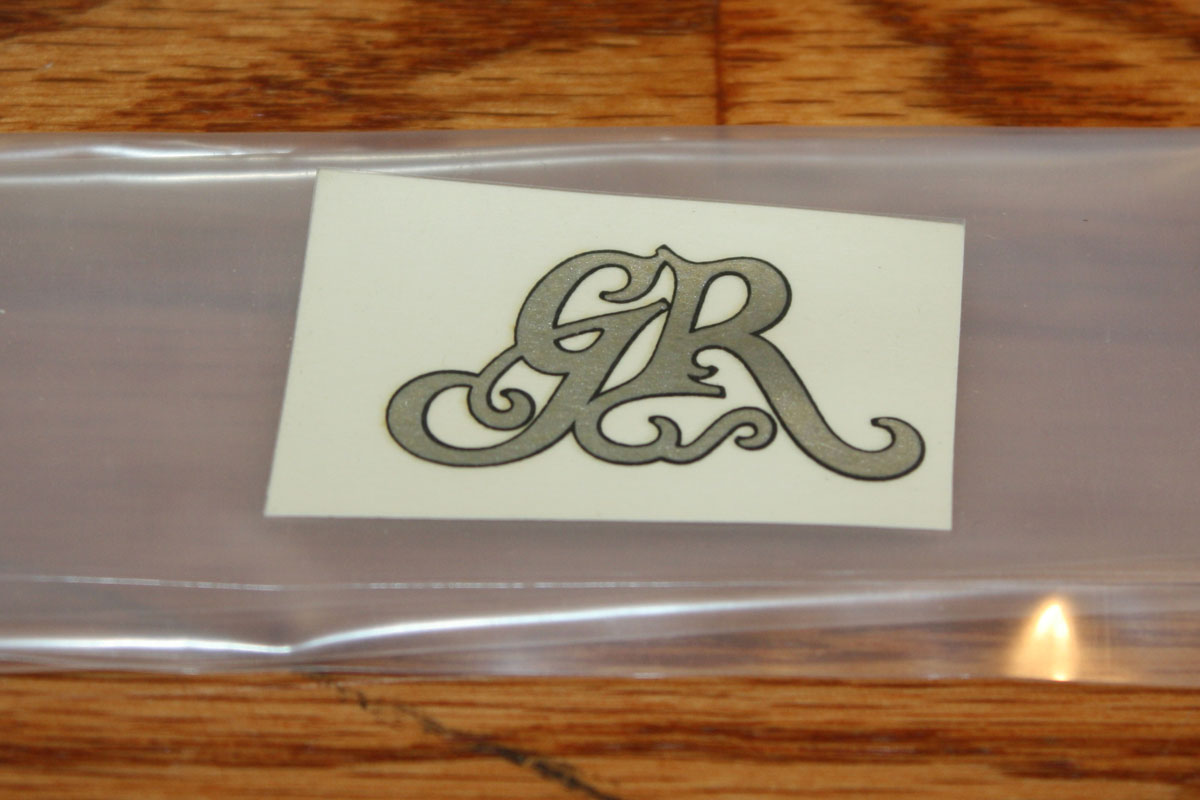

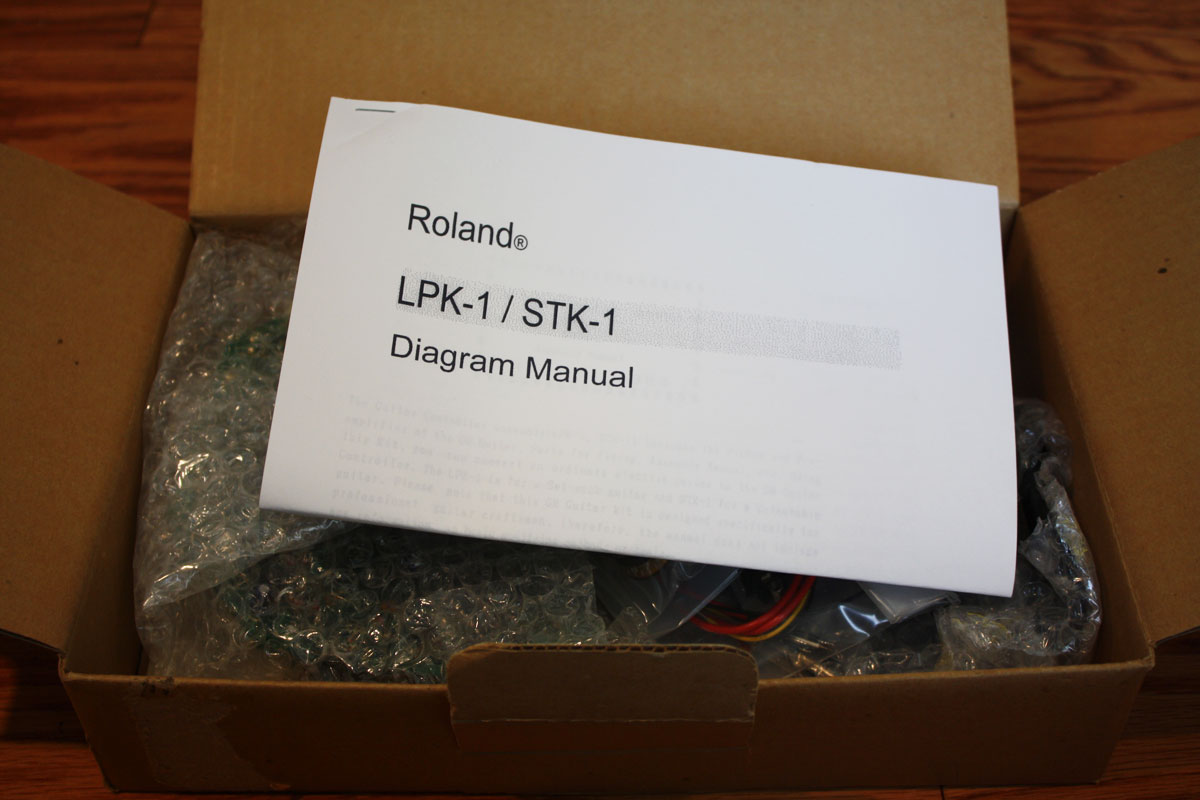

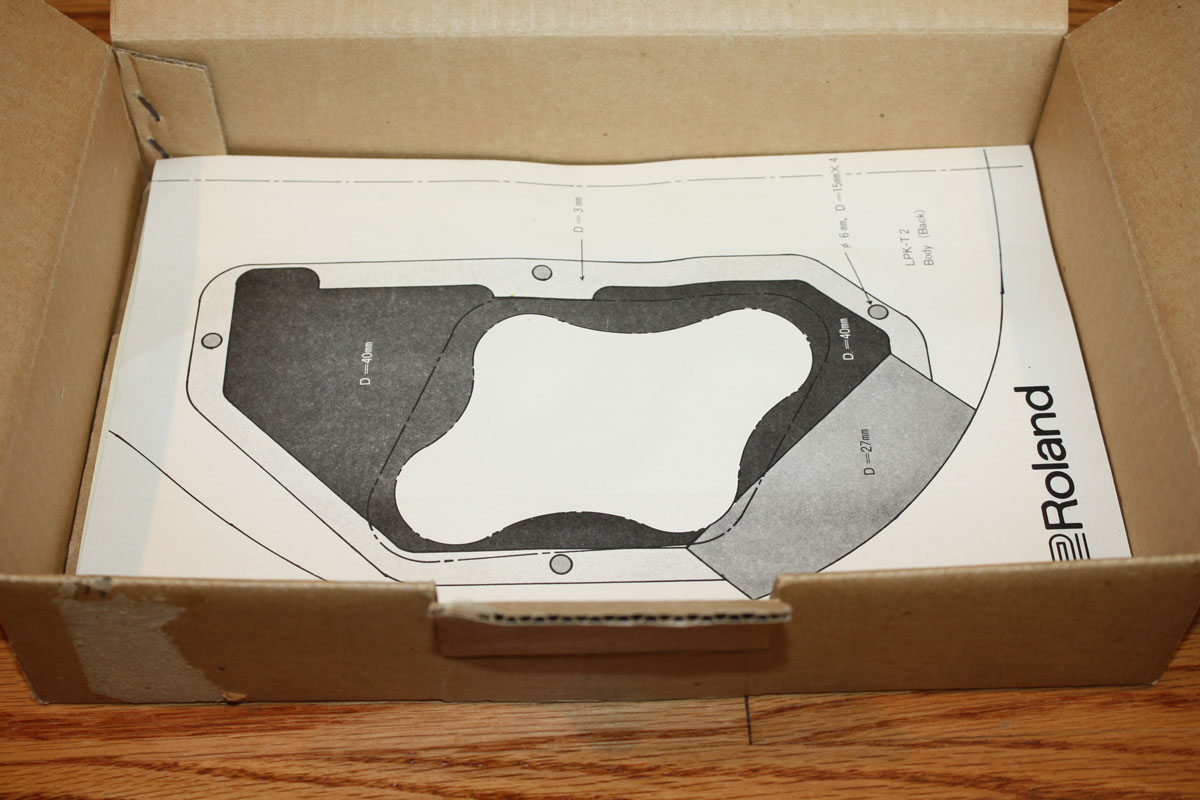

Routing Template for Guitar	GR Decal	Reproduction Owner’s.Installation Manual.
Click on any image to enlarge in new window.

Video Demo of the LPK-1 Kit: Divided Hex Pickup, LPK Pre-Amp Board and 24-pin Connector

	Full test of this LPK-1 Kit
	This video clip shows a test of this LPK-1 Kit: The divided hex pickup, LPK preamp board, and 24-pin connector.

Electronics Cards


LPK-1 and G-303/G-808 electronics card.	Pots and switches are on leads to facilitate mounting on a carved top guitar.	The STK-1/G-707 card does not have the hex fuzz circuit.	The BAK-1 card is the same electronics package as the G-77 bass.	The BAK-1 does not use a plastic ribbon for conecting to the synth pickup.

Download LPK-1/STK-1 Installation Manual
