Roland VG-88: V-Guitar System
Features and Specifications:
- COSM Modeling Engine: Self-contained guitar processing/modeling system which recreates a wide variety of guitar, pickup, amp, speaker cabinet and microphone sounds using a standard electric guitar equipped with GK-2A or compatible pickup (sold separately)
- HRM: HRM (Harmonic Restructure Modeling) creates synth-type sounds—including new brass sounds—with natural playing nuances and without delay
- Pitch Shifter: Polyphonic Intelligent Pitch Shifter for instant open tunings, 12-string guitars, bass guitar, string-assignable octave, slow gear, and more

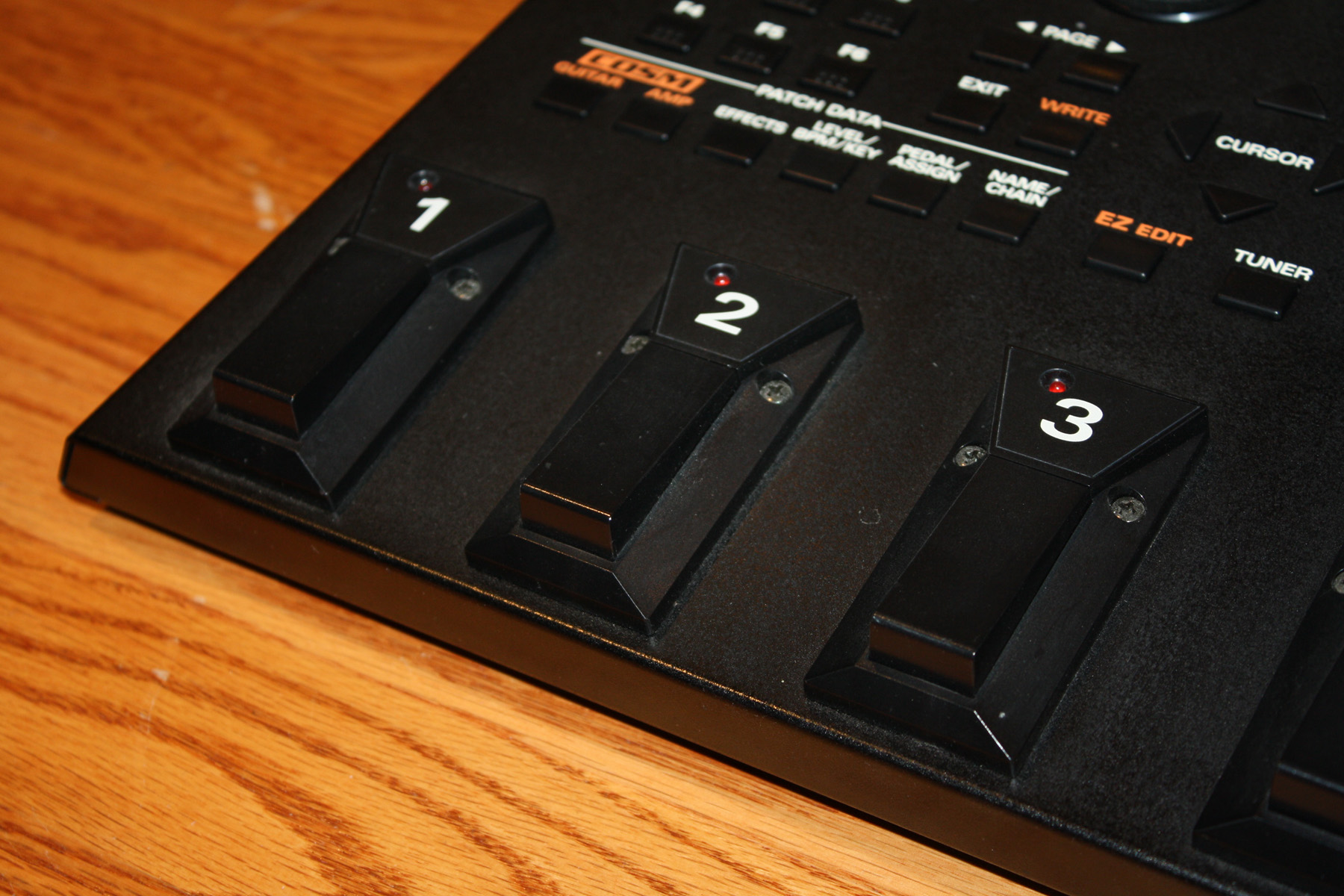

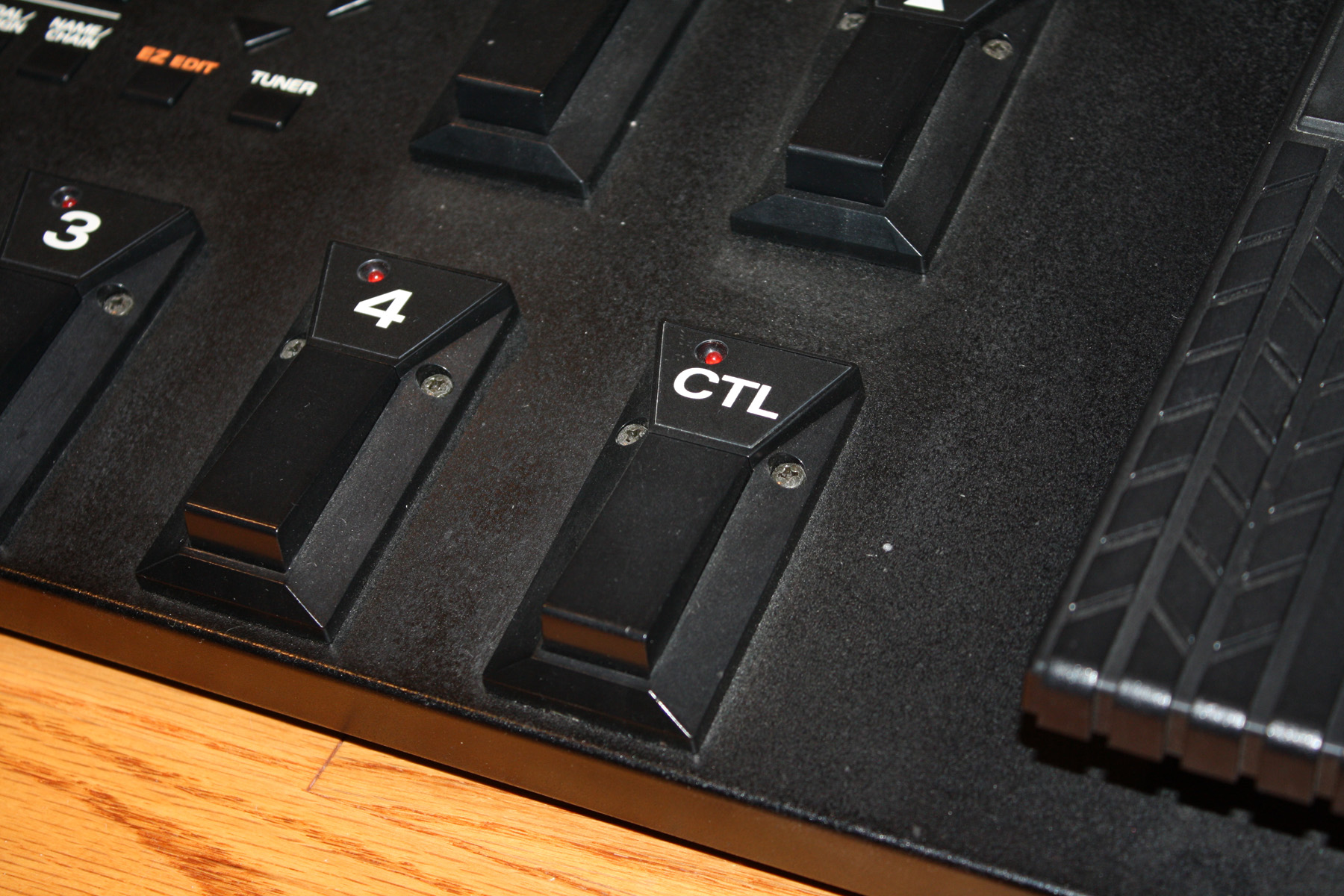

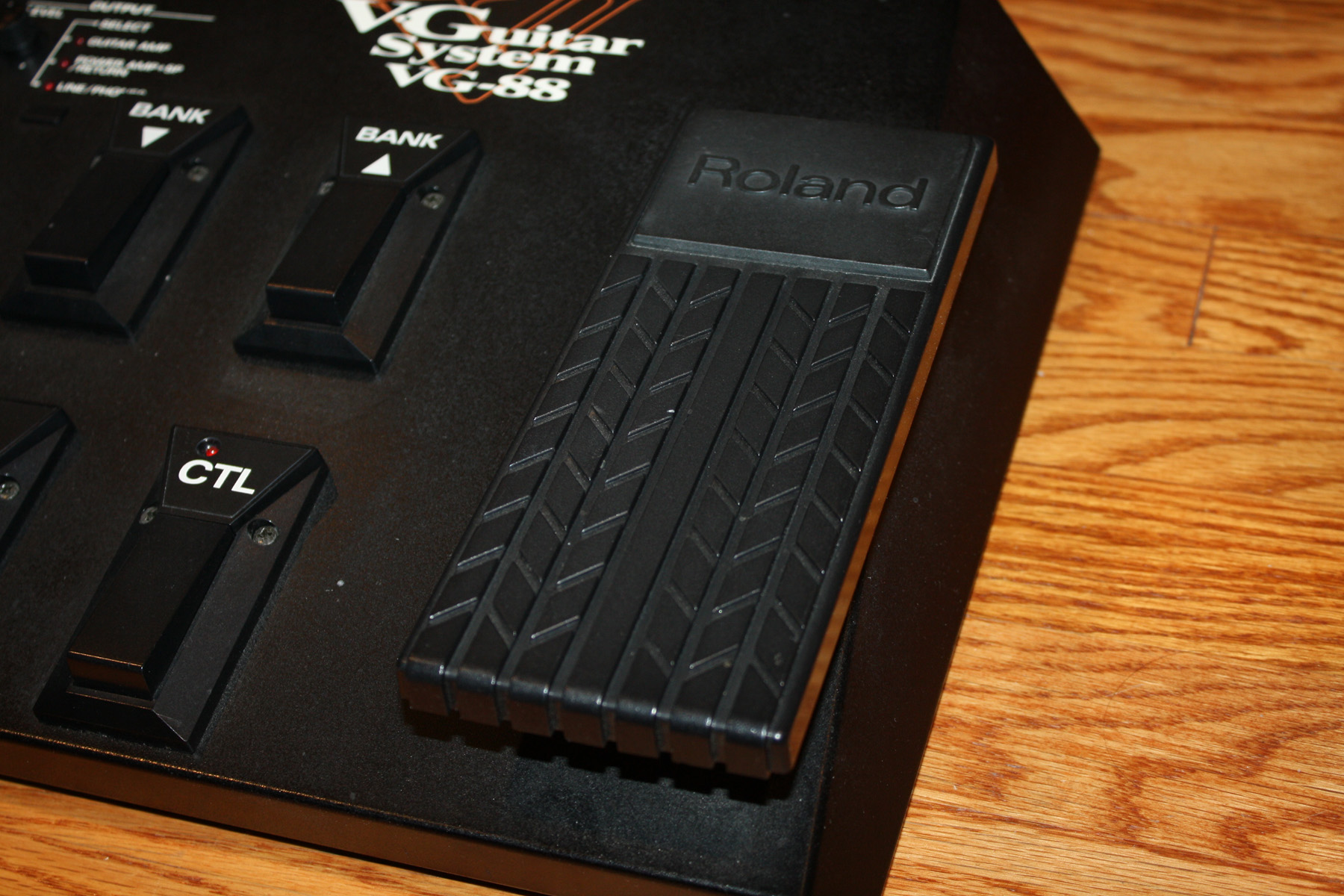

- Controls: Onboard expression pedal for realtime parameter control
- Dimensions: 504 mm (W) 101 mm (H) 303 mm (D)
- Weight: 4.9 kg
