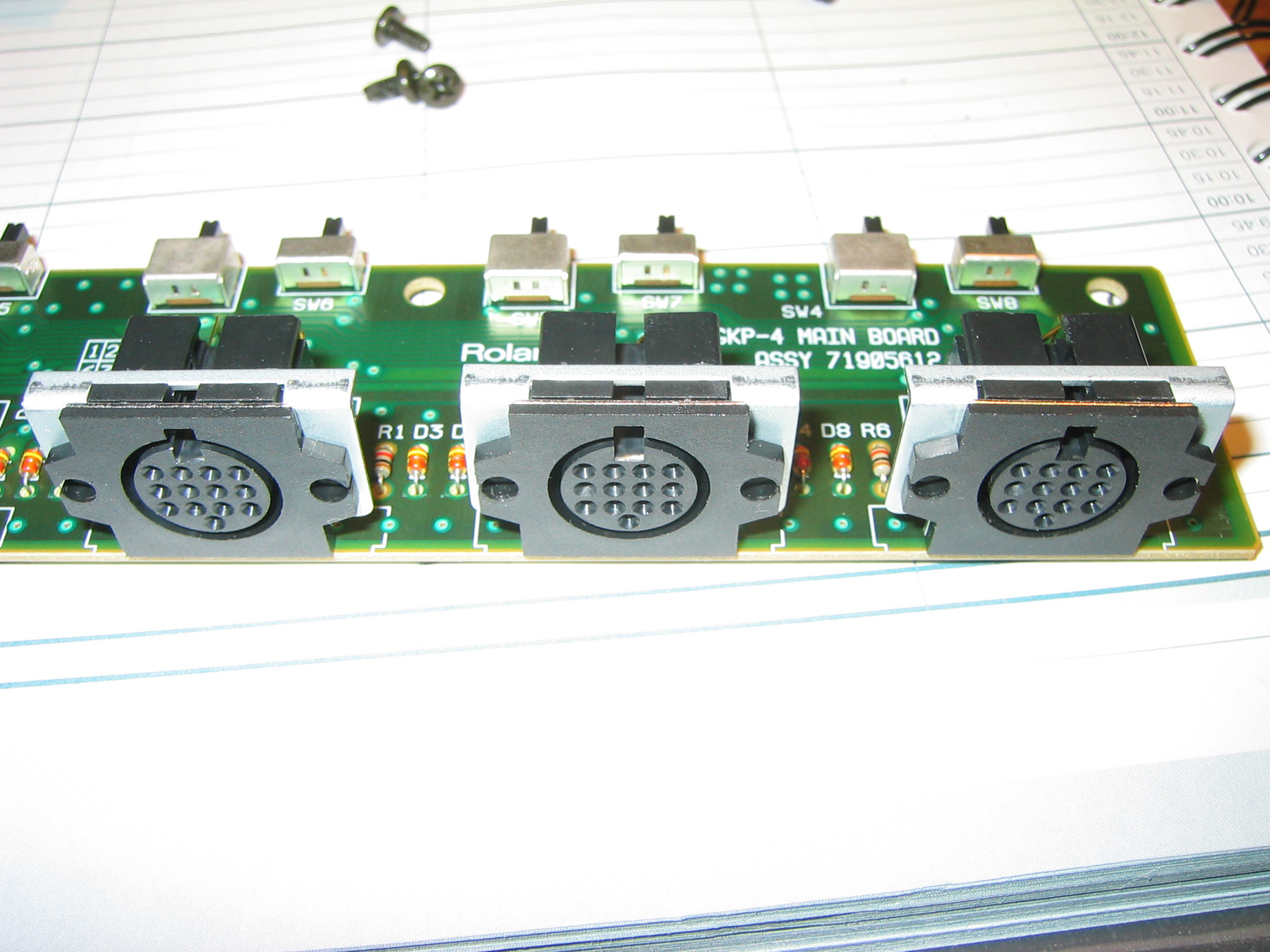

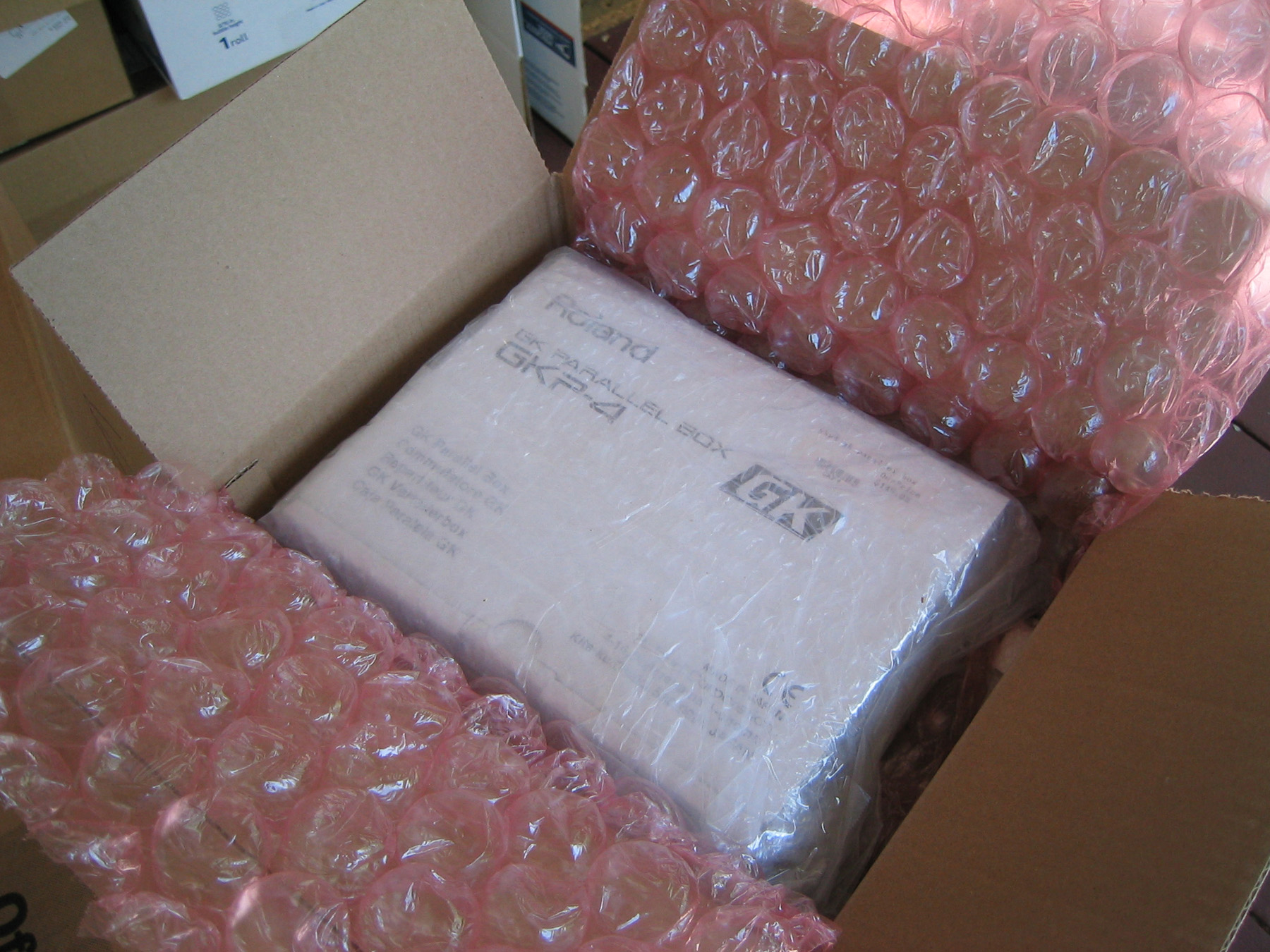

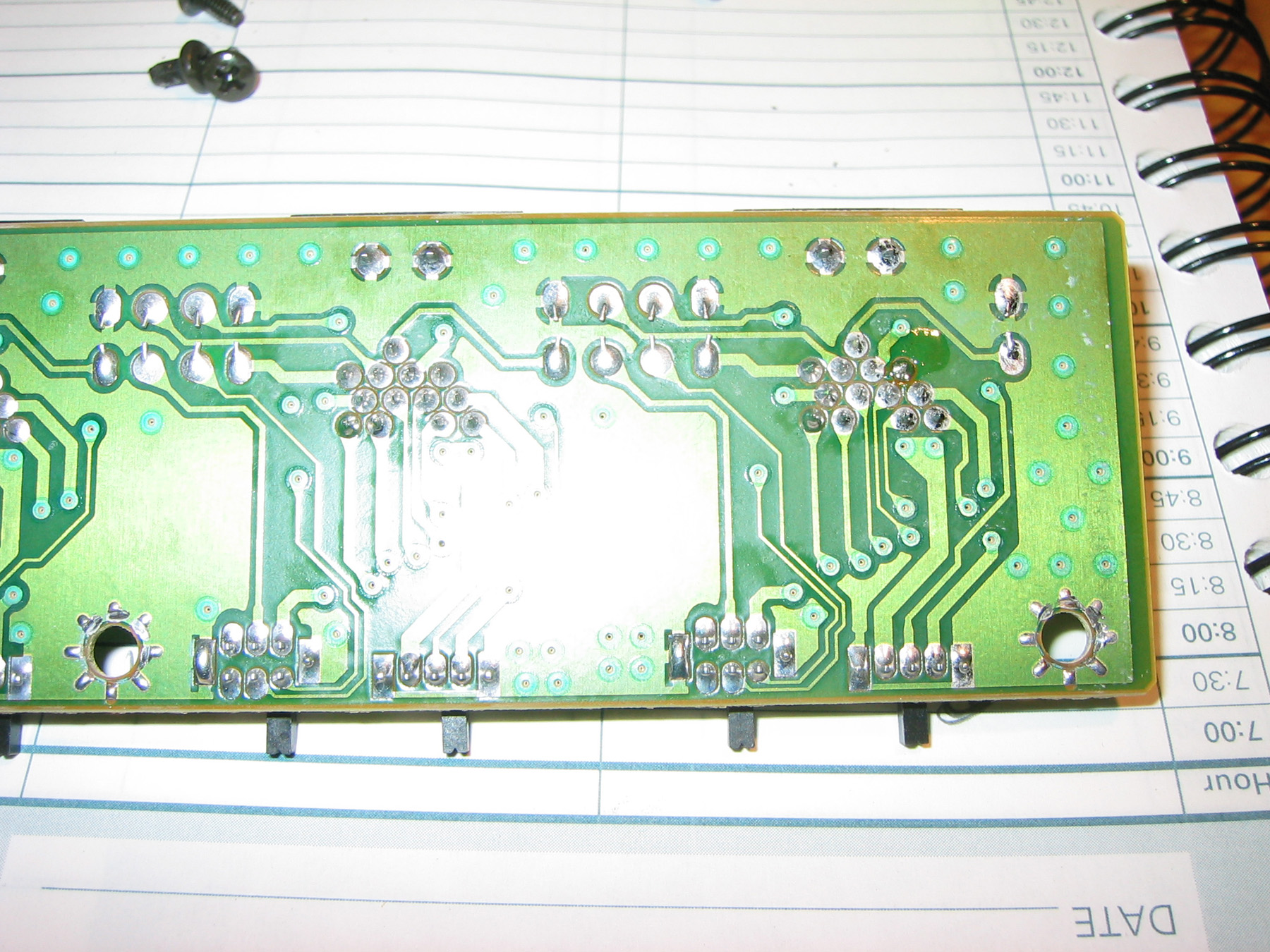

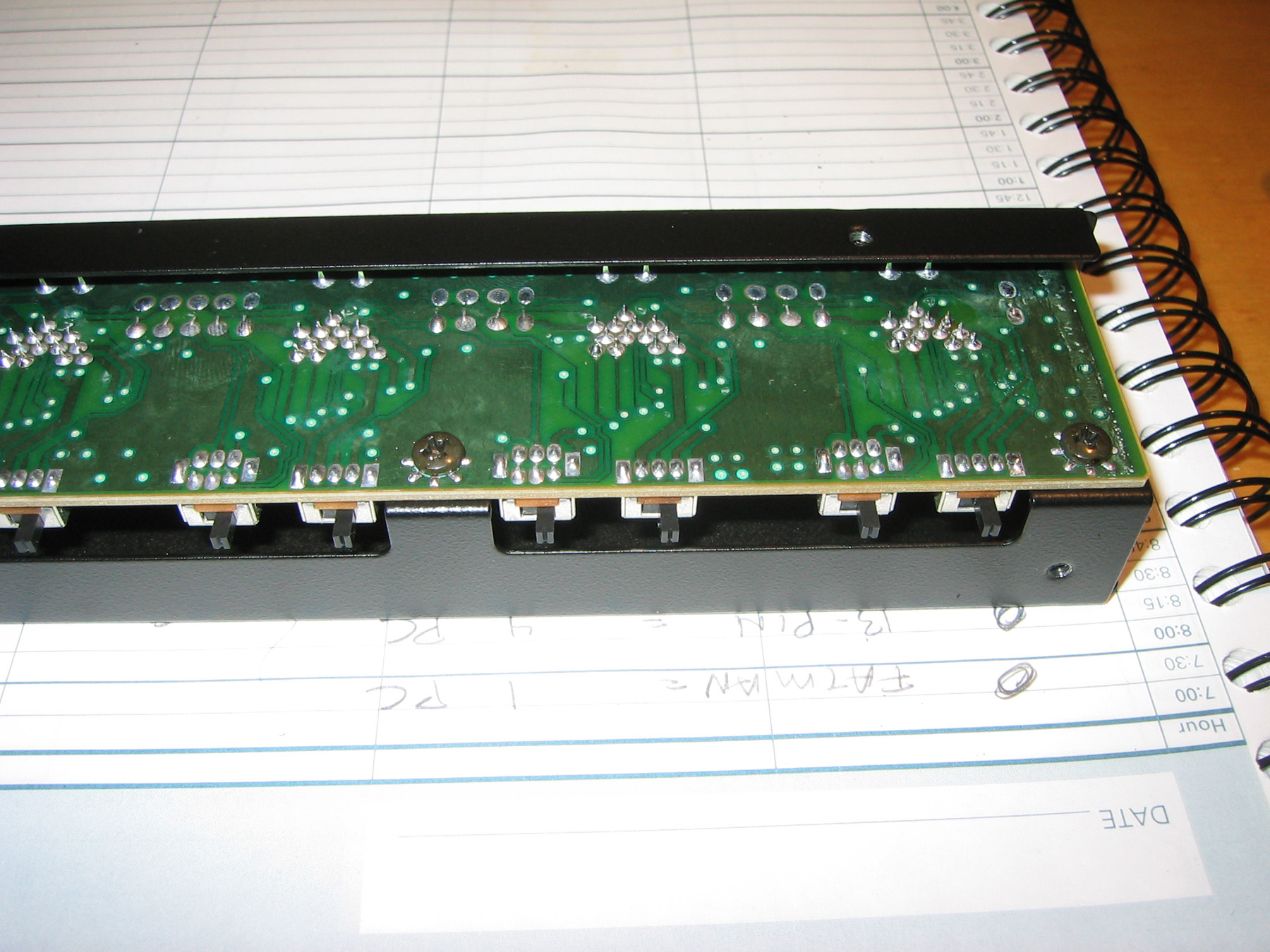

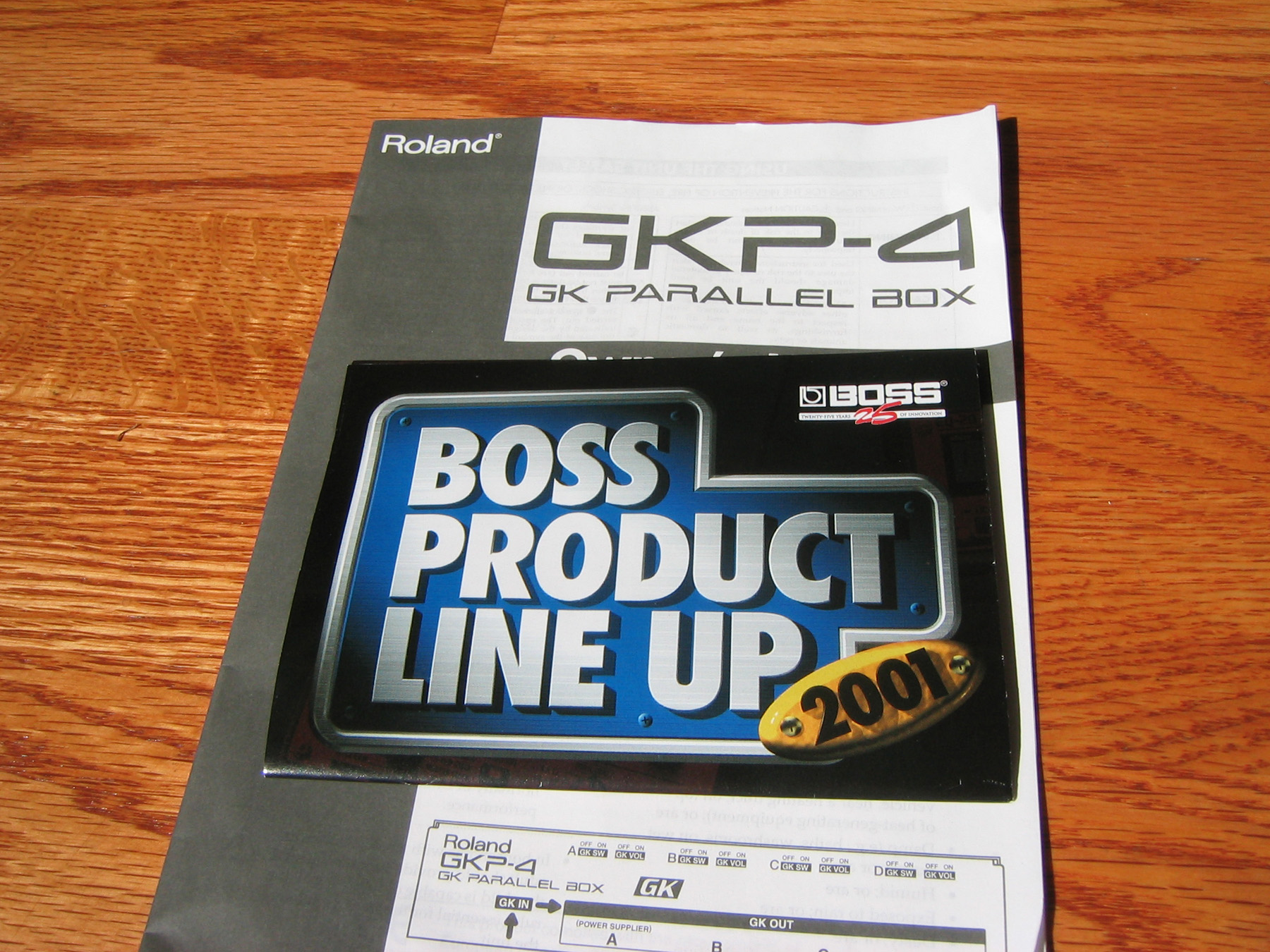

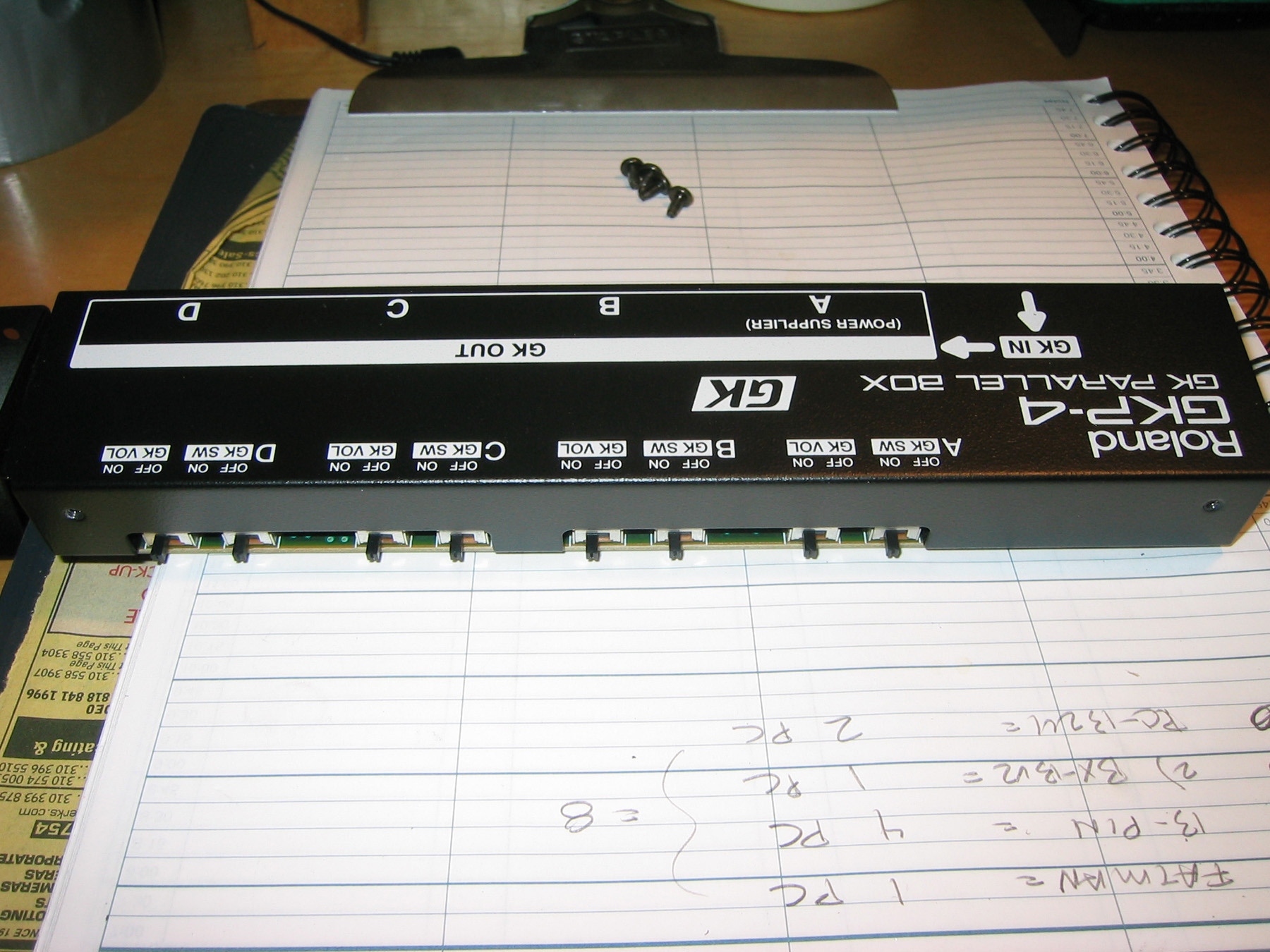

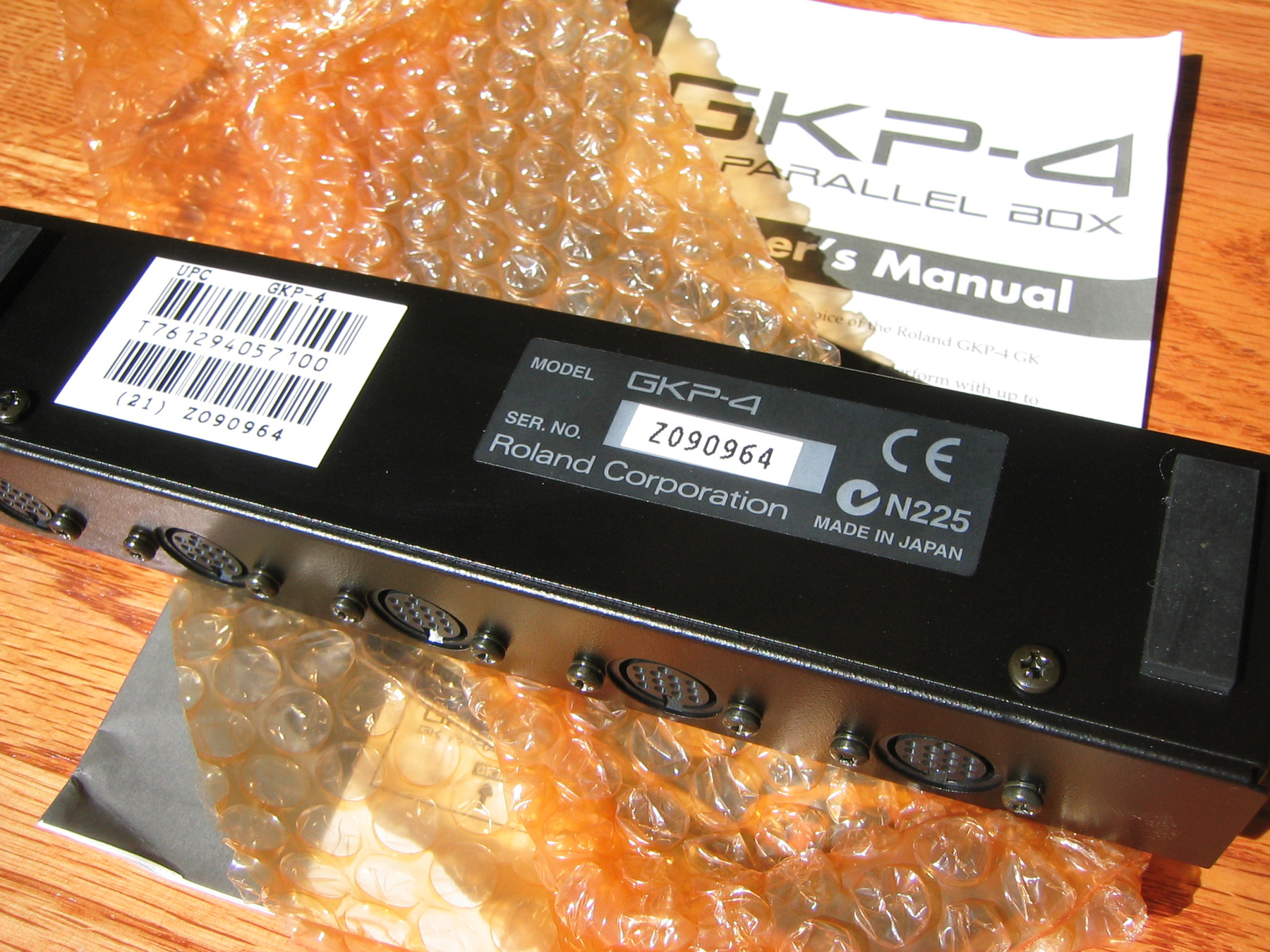

Roland GKP-4 - GK Parallel Box
Features and Specifications:
- 1 In / 4 Out parallel box for guitars equipped with 13-pin GK-compatible pickups
- Allows simultaneous connection to BOSS GK Effects pedals, Roland V-Guitar products and guitar synthesizers
- Separate switches for GK volume and GK output on/off
- No batteries or power supply required; draws power through GK cable
- Includes 2 GK cables
- Dimensions: 210 mm (W) 49 mm (D) 34 mm (H).
- Weight: 310 g / 11 oz
