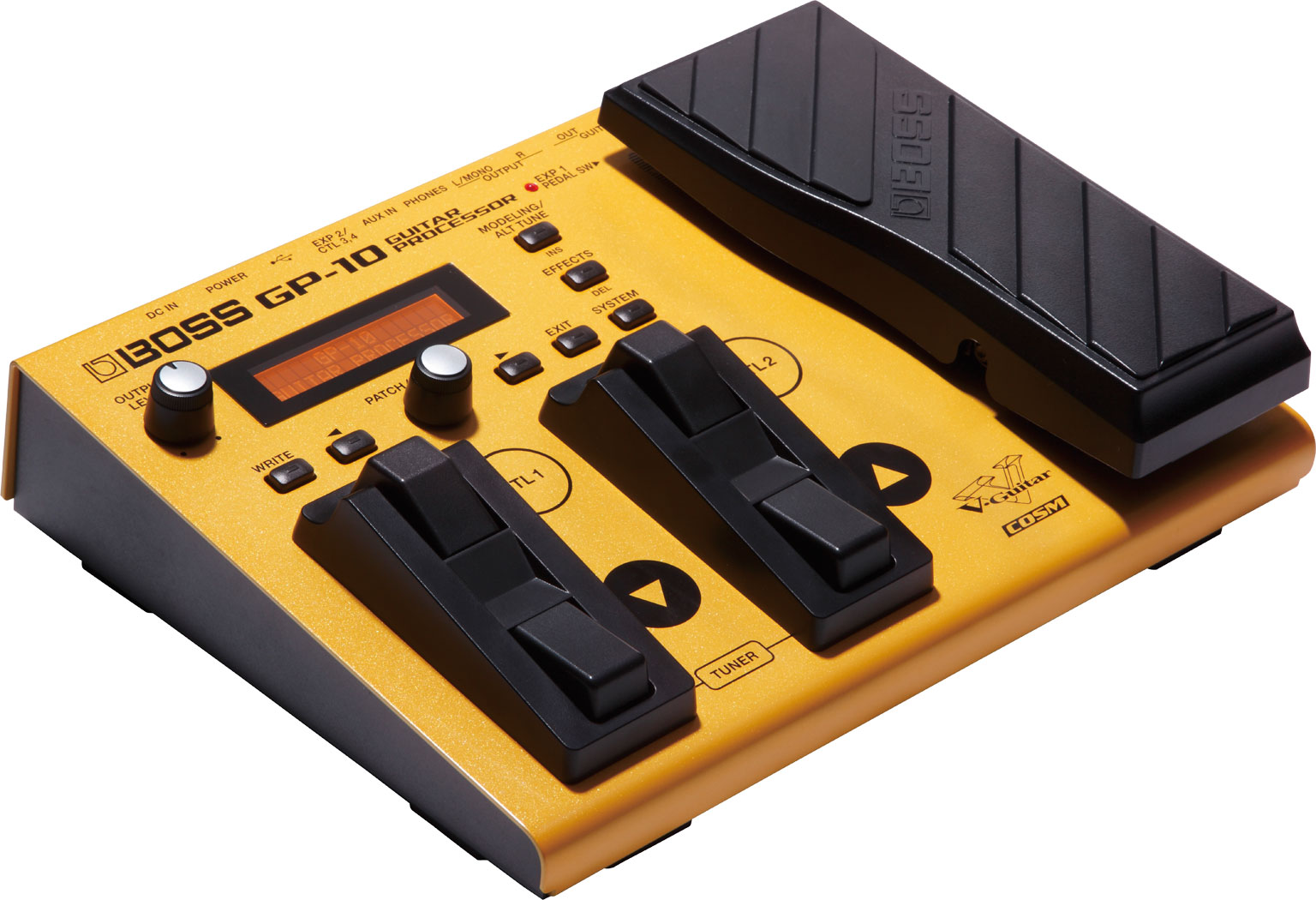

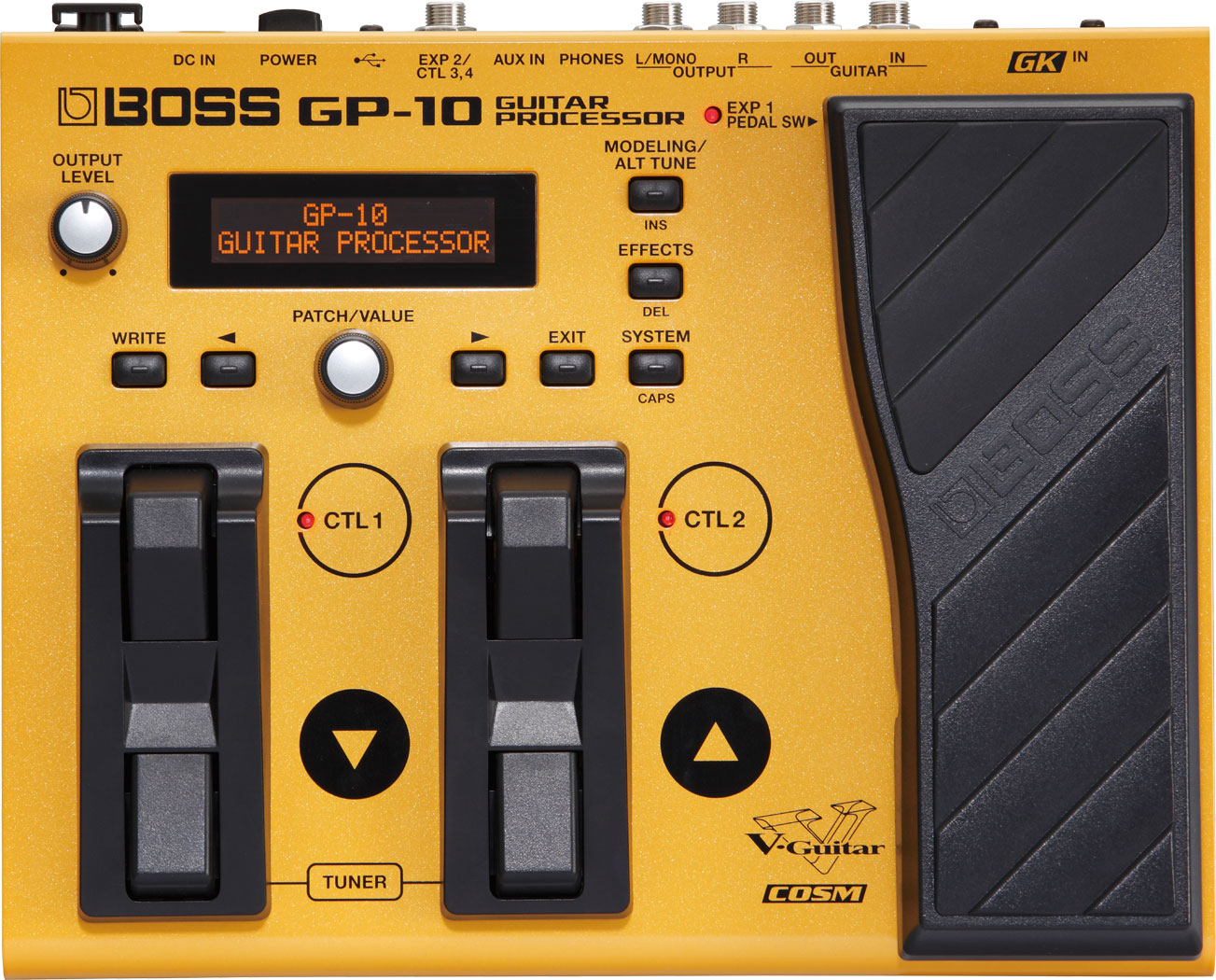

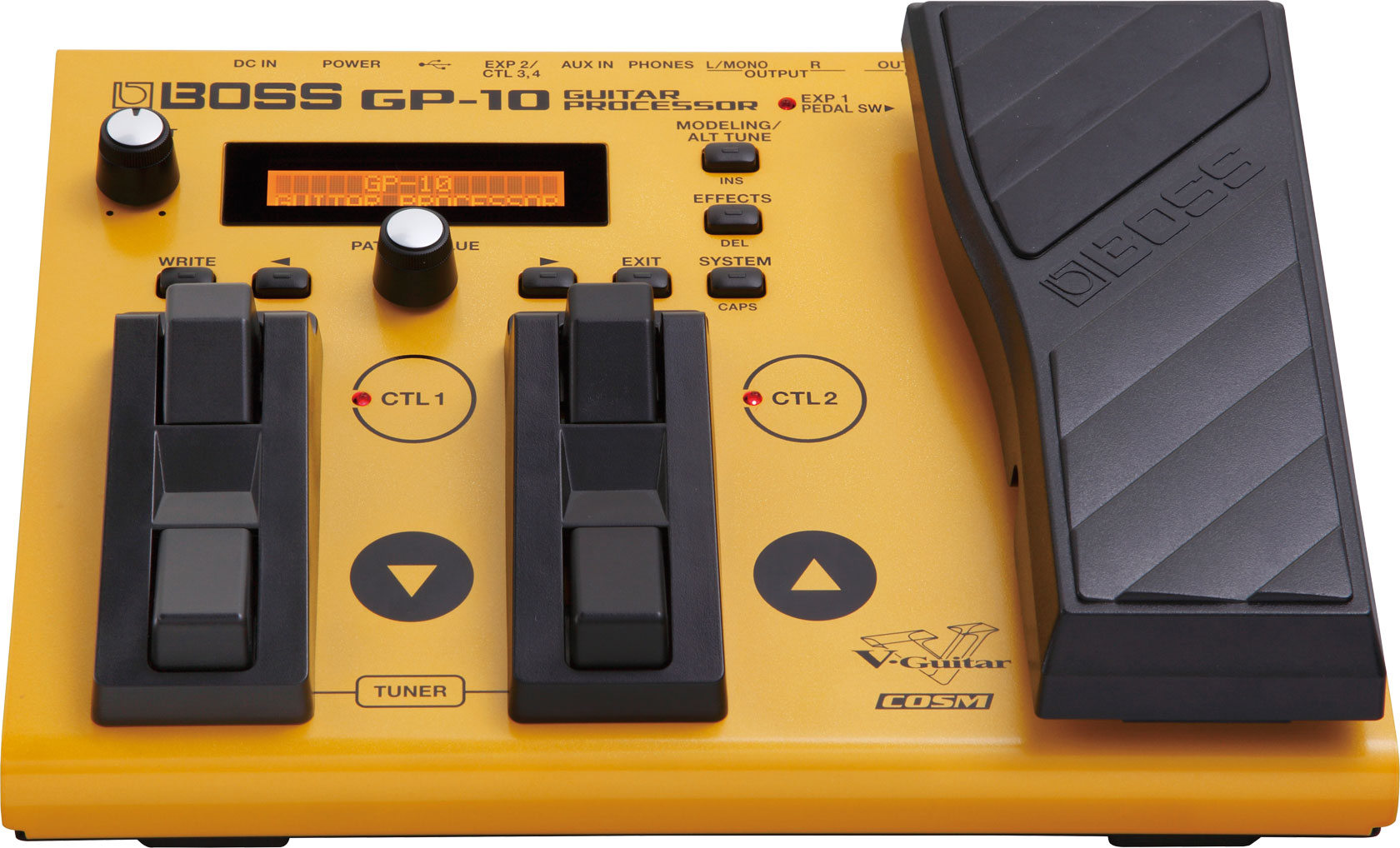

Features and Specifications:
- Modeling: Electric guitar: 12 types Acoustic: 9 types Bass: 3 types Guitar synthesizer: 3 types Poly FX: 5 types
- Alternate Tuning: OPEN: D, E, G, A DROP: D to A D-MODAL NASHVILLE SHIFT: -12 to +12 USER 12-string guitar function.
- Effects: Preamp: 30 types FX: 16 types (including OD/DS) OD/DS: 21 types Wah: 6 types Chorus: 3 types Delay: 10 types Reverb: 7 types EQ: 1 type Noise Suppressor(NS): 1 type.
- Patch Memory: 99.

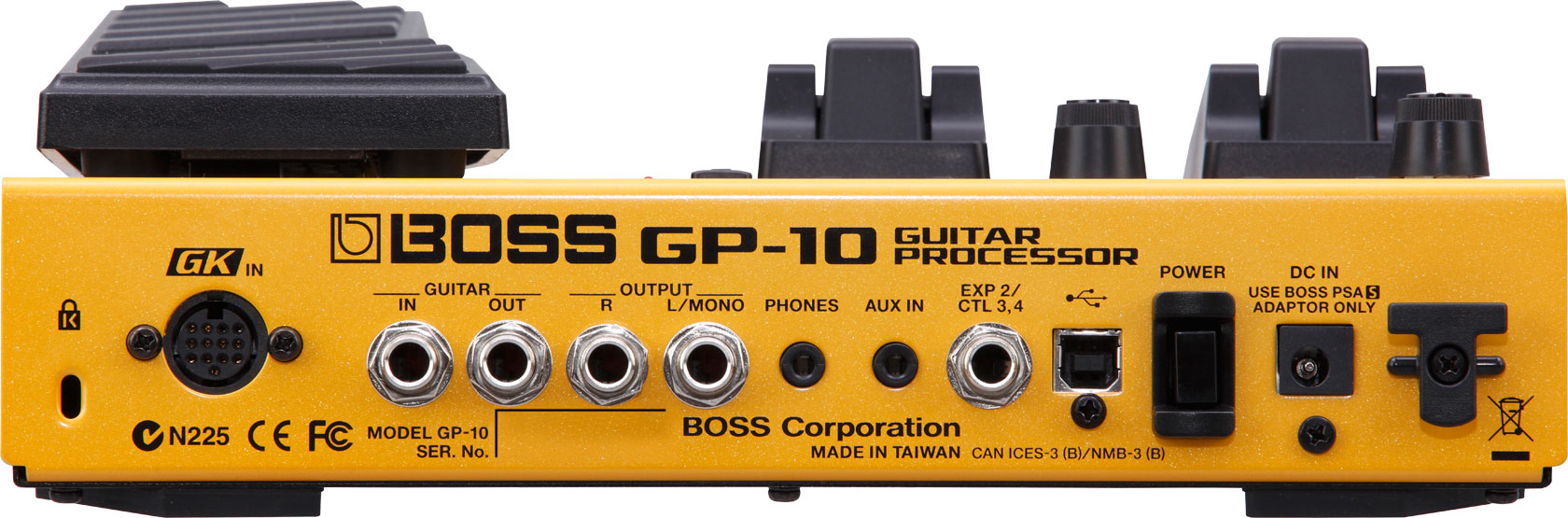

- Connectors: GK IN connector: 13-pin DIN type GUITAR IN jack: 1/4-inch phone type GUITAR OUT jack: 1/4-inch phone type OUTPUT (L/MONO, R) jacks: 1/4-inch phone type PHONES jack: Stereo miniature phone type AUX IN jack: Stereo miniature phone type EXP 2/CTL 3, 4: 1/4-inch TRS phone type USB port: USB type B DC IN jack.
- Dimensions: 251 mm (W) 71 mm (H) 207 mm (D)
- Weight: 1.9 kg 4 lbs. 4 oz.
