Roland PG-200

Roland PG-200 Synthesizer Programmer

Features and Specifications:

  • DCO-1: Range (4', 8', 16') waveform: triangle, pulse, square, FM (lfo, env)
  • DCO-1: Range (4', 8', 16') waveform: triangle, pulse, square, noise, FM (lfo, env), tune (+/- 1200 cent) cross modulation (sync, metal)
  • Modulation: sensitivity (lfo, env)
  • VCF: source mix, HPF cutoff frequency, LPF cutoff frequency, resonance, env modulation, polarity, LFO modulation, pitch follow
  • VCA: mode (env, gate) level
  • ENV: Attack time, decay time, sustain level, release time
  • LFO: Waveform (sine, square, random), delay time, rate
  • Chorus: (on/off)
  • Function buttons: Manual button & indicator, write button & indicator
  • DIN jack (DIN6P)
  • Dimensions: 244 (W) x 172 (H) x 45 (D) mm
  • Weight: 1.4 kg/3 lb. 1 oz.
Roland PG-200 and GR-700

Introduction to the Roland PG-200:

The PG-200 was built by Roland to aid in the programming of the Roland JX-3P, MKS-30 and GR-700. The JX-3P, MKS-30 and GR-700 all share the same synthesizer engine, and have the same programming parameters.

Roland PG-200 Programmer Map
Click on image for larger view.

The PG-200 is not necessary to program these synthesizers, but programming is much easier with the PG-200. Even with a deep knowledge of analog synthesis, using the PG-200 provides for many "happy accidents" that can provide some great sounds.

The PG-200 connects to the host synthesizer via a 6-pin DIN cable. These cables are easy to build if lost. They use a 6-pin DIN connector often used as a power plug. The pins are wired one-to-one, i.e. pin "1" to pin "1", etc.

Links to more information:

Photos:

Roland PG-200 Roland PG-200 Roland PG-200
Roland PG-200 Roland PG-200 Roland PG-200
Roland PG-200 Roland PG-200 Roland PG-200
Roland PG-200 Roland PG-200 Roland PG-200
Roland PG-200 Roland PG-200 Roland PG-200
Roland PG-200 Roland PG-200 Roland PG-200
Click on any image for larger view.

Replacement RRC Cable for PG-200

DIY Roland RRC Cable DIY Roland RRC Cable DIY Roland RRC Cable
DIY Roland RRC Cable DIY Roland RRC Cable DIY Roland RRC Cable
Click on any image for larger view.

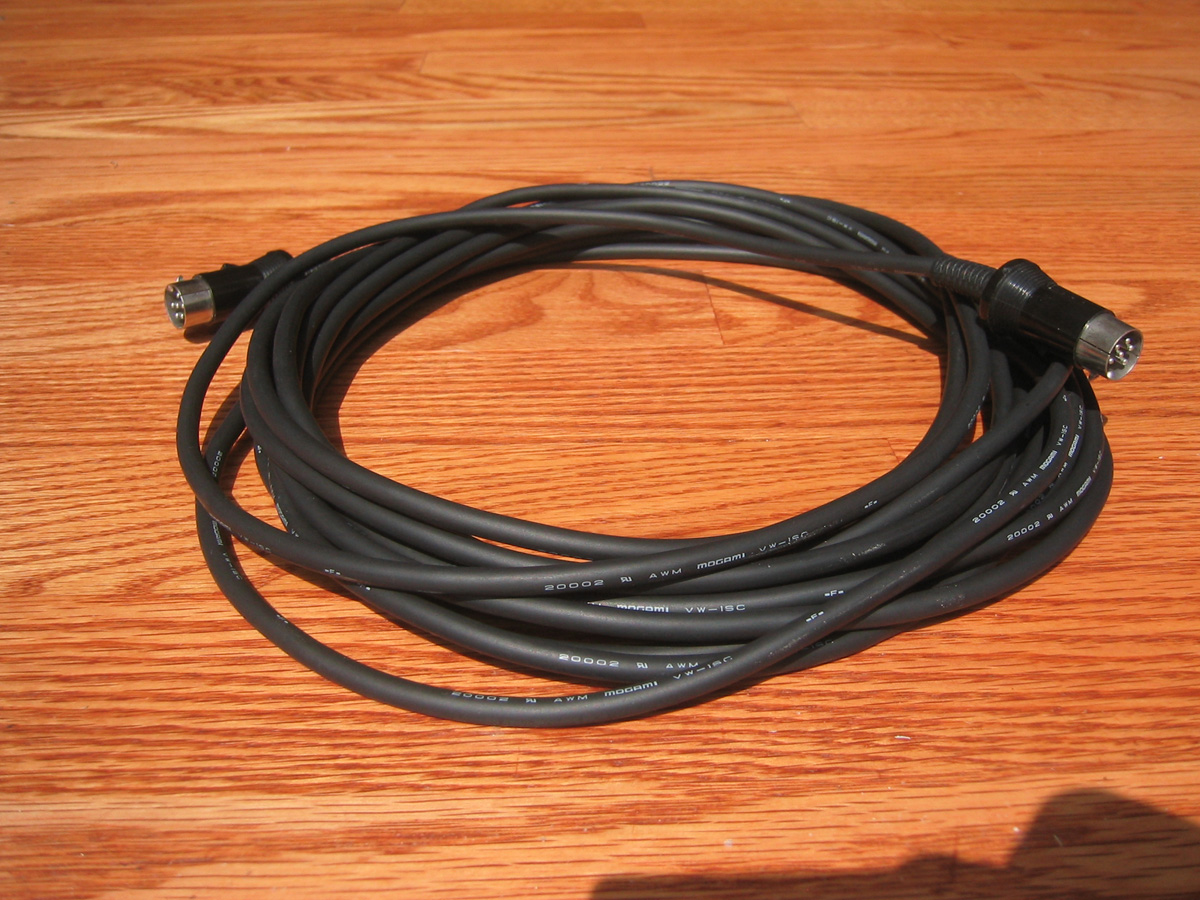

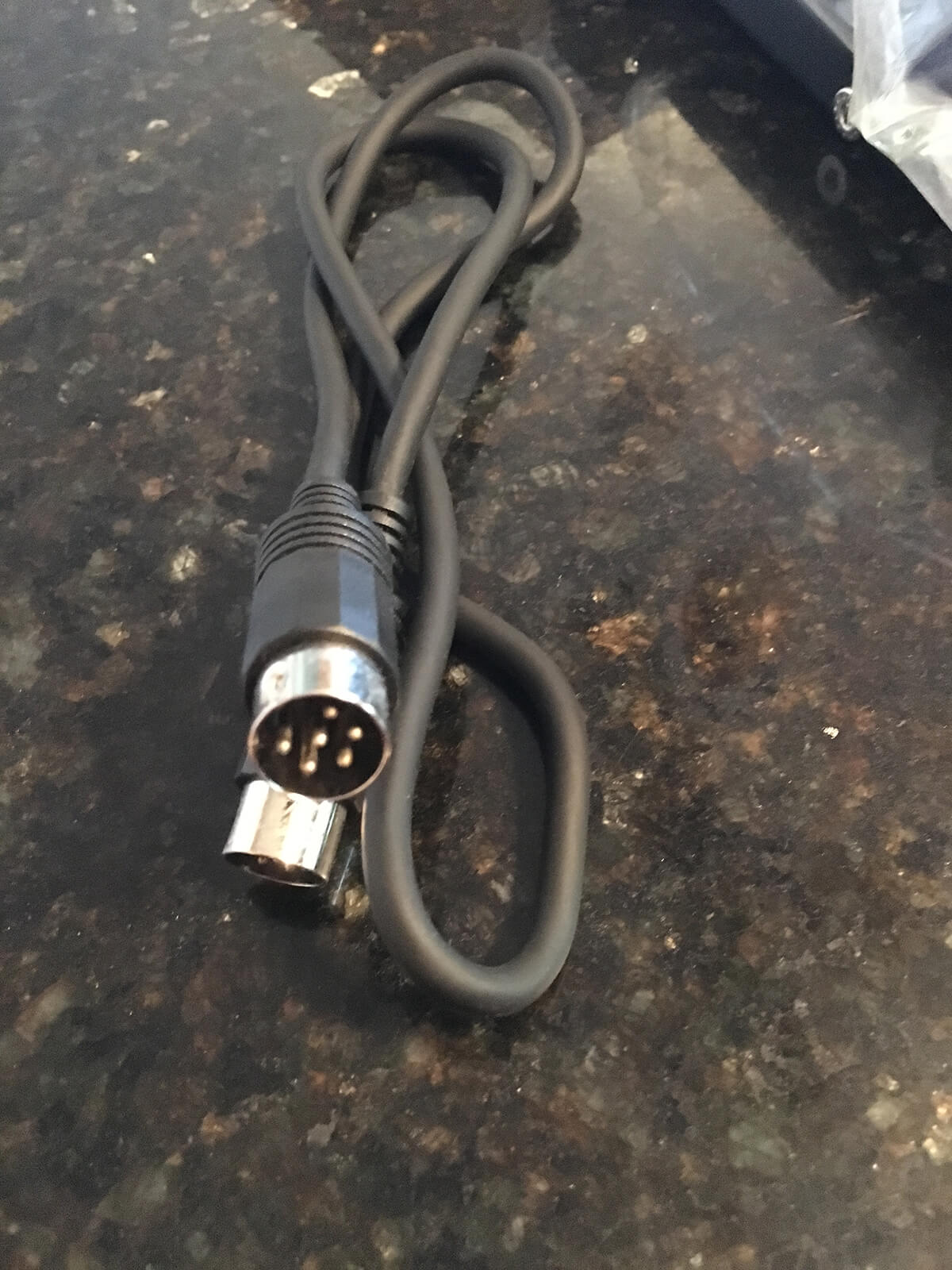

The Roland PG-200, PG-800 and the Roland GM-70 all use a six-pin cable, frequently referred to as the RRC cable. The cables are tough tough to find, since they may get misplaced after thirty years, and often sell for $30 - $50 in the used marketplace. If you have some basic soldering skills, it is easy to make a replacement cable.

The replacement six pin connector is readily available, usually referred to as a power connector. You also need some six-conductor wire. Old computer serial cables use eight conductors, or you can search for specialized wire. The cable is wired "straight-through" that is, pin 1 on the first connector is wired directly to pin 1 on the second connector, etc.

Videos:

Schematics - Repairs - Service Bulletins:

There are no known service bulletins from Roland addressing any PG-200 problems.
