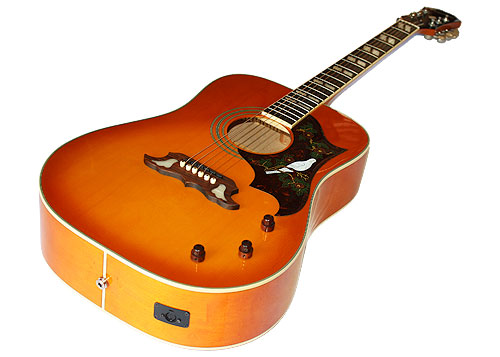

Epiphone Dove Ghost Acoustic Midi Kit

Epiphone Dove Ghost Acoustic Midi Kit

Features and Specifications:

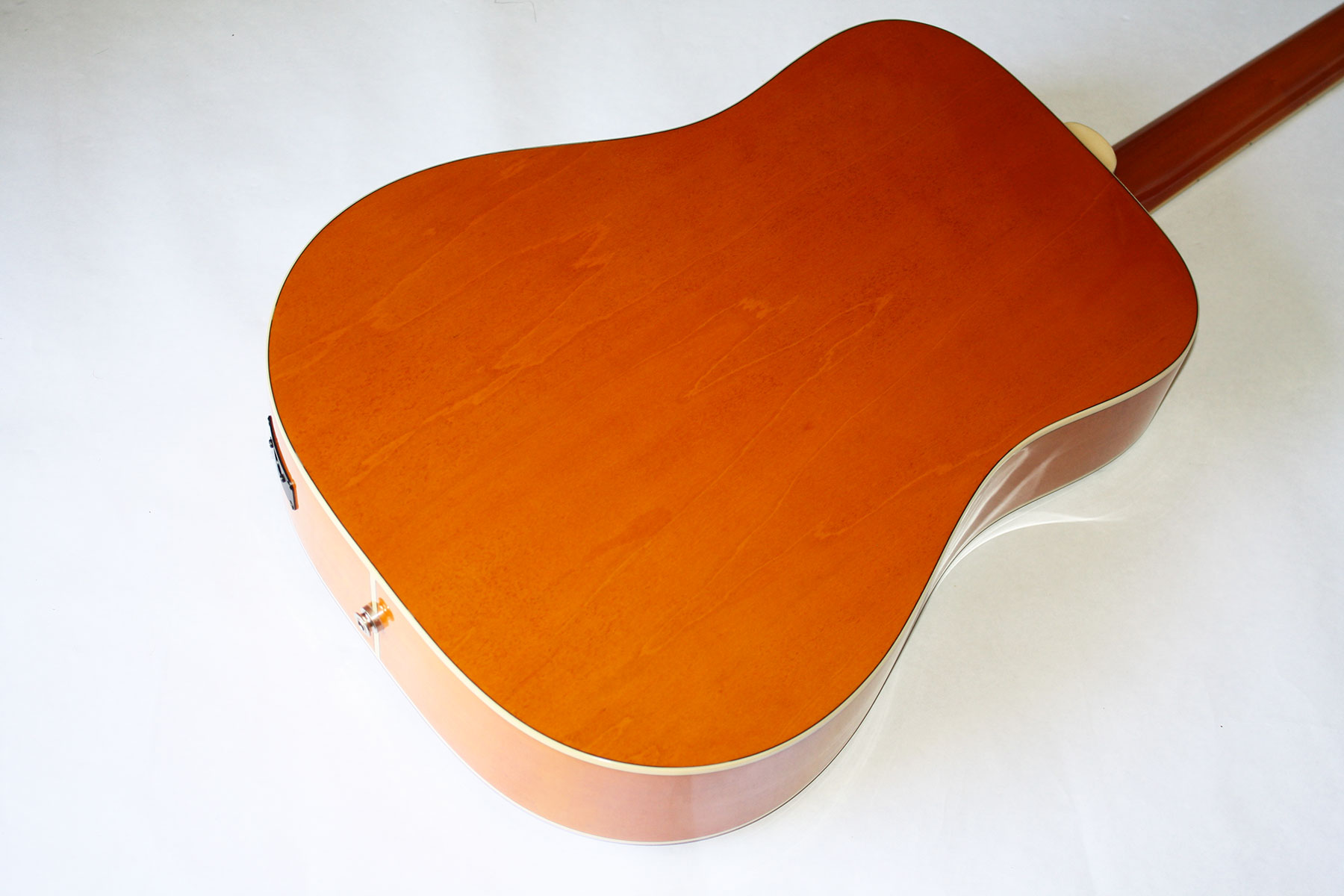

  • Body: Select Maple
  • Finish: Gloss
  • Neck: 11.999" radius

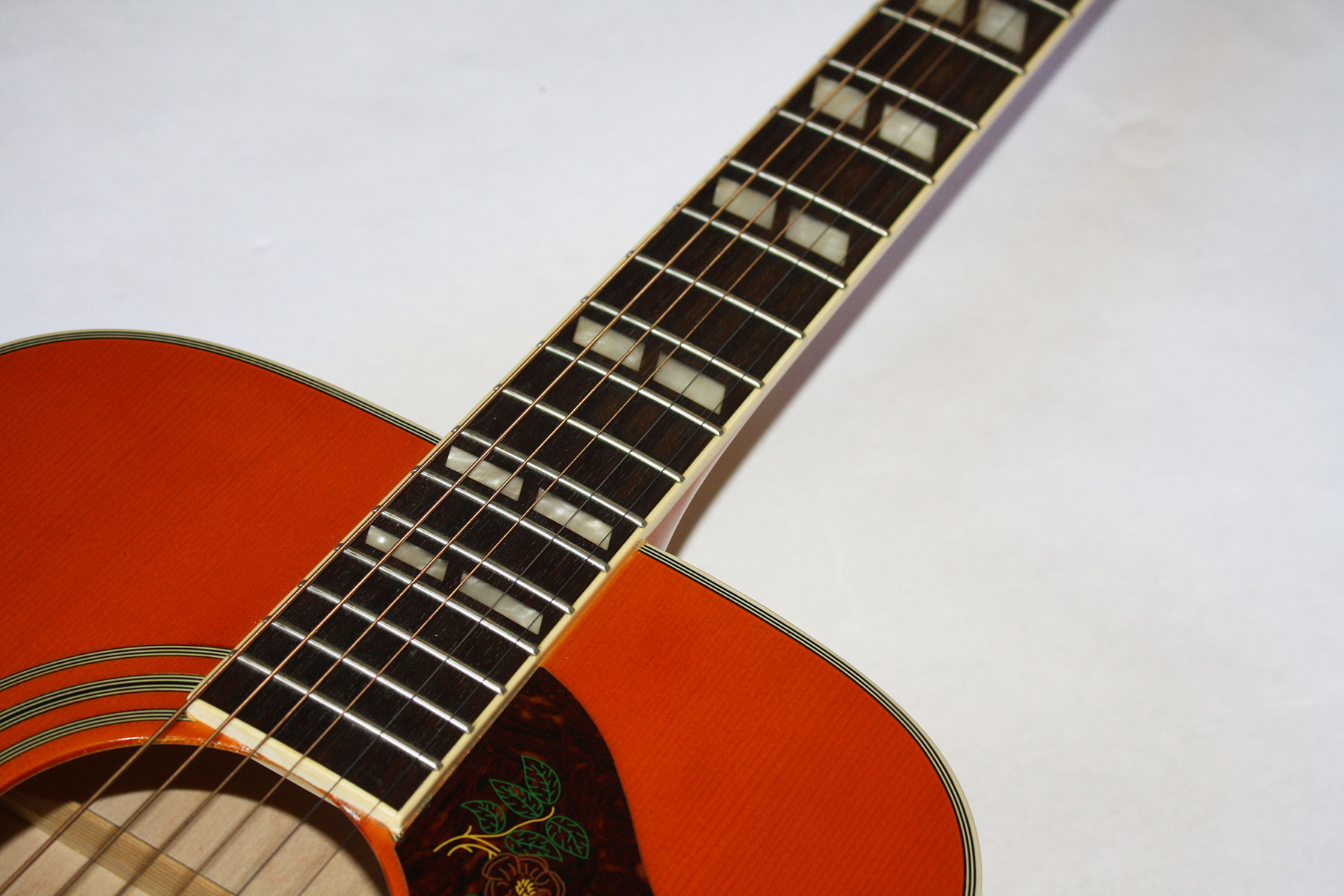

  • Fingerboard: Laurel
  • Frets: 22 medium

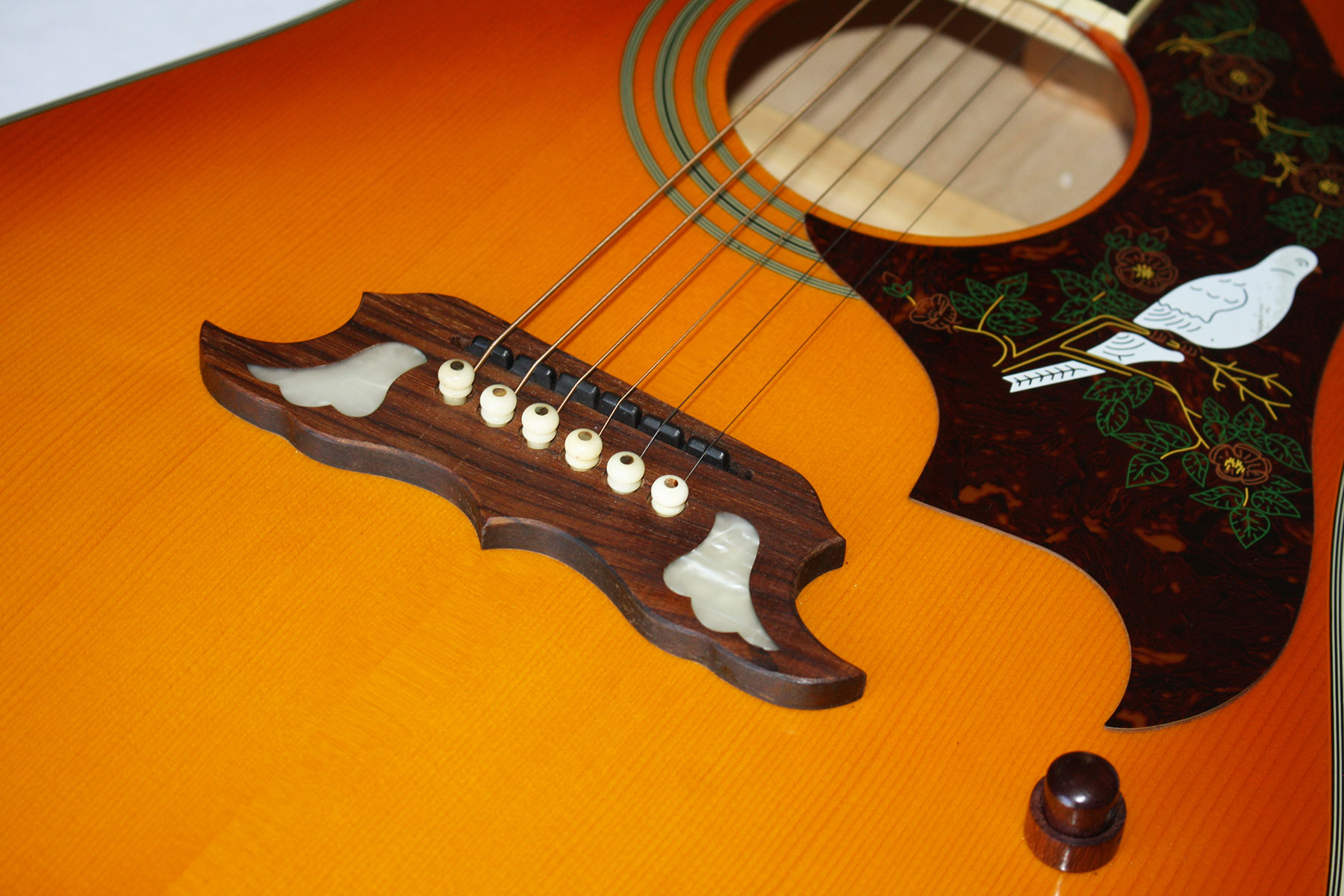

  • Bridge: Graph Tech GHOST Acoustic/MIDI System

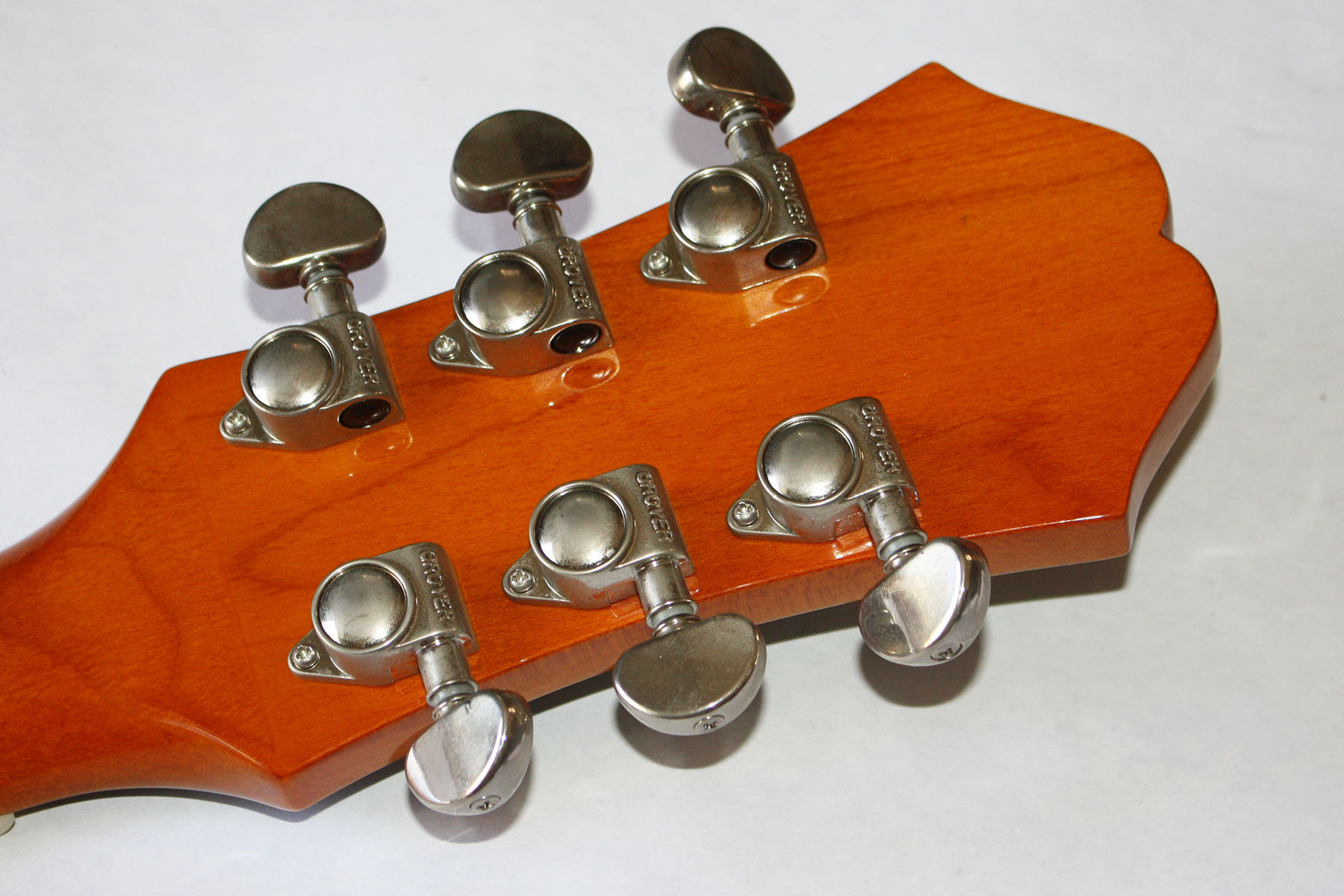

  • Tuning machines: Grover® Rotomatic® 14:1
  • Pickups: Graph Tech GHOST Acoustic/MIDI System
  • Scale:25 1/2"
  • Truss Rod: Adjustable
  • Neck Width: 1.68"
  • Weight: 8 lbs 3 oz

Introduction to the Epiphone Dove:

I purchased this guitar used with the Graph Tech Dove Ghost Acoustic Midi Kit already installed, so I do not know much about the history of the installation.

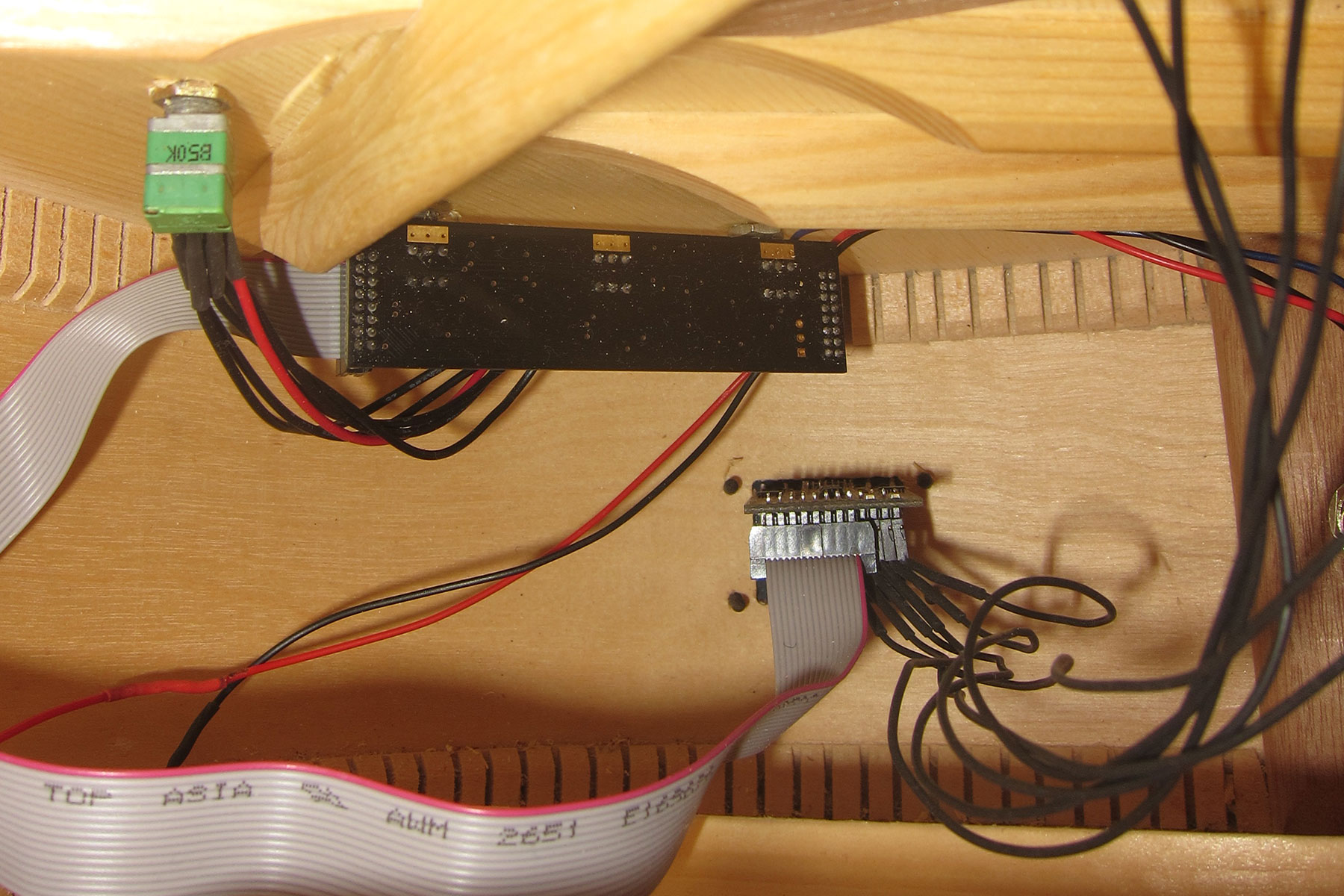

A few things I want to point out: The Acoustic Midi Kit acoustic pickup and preamp is designed to be powered by a 9 volt battery installed inside the guitar. Power to the acoustic pickup and preamp is provided when a 1/4" cable is plugged into the guitar.

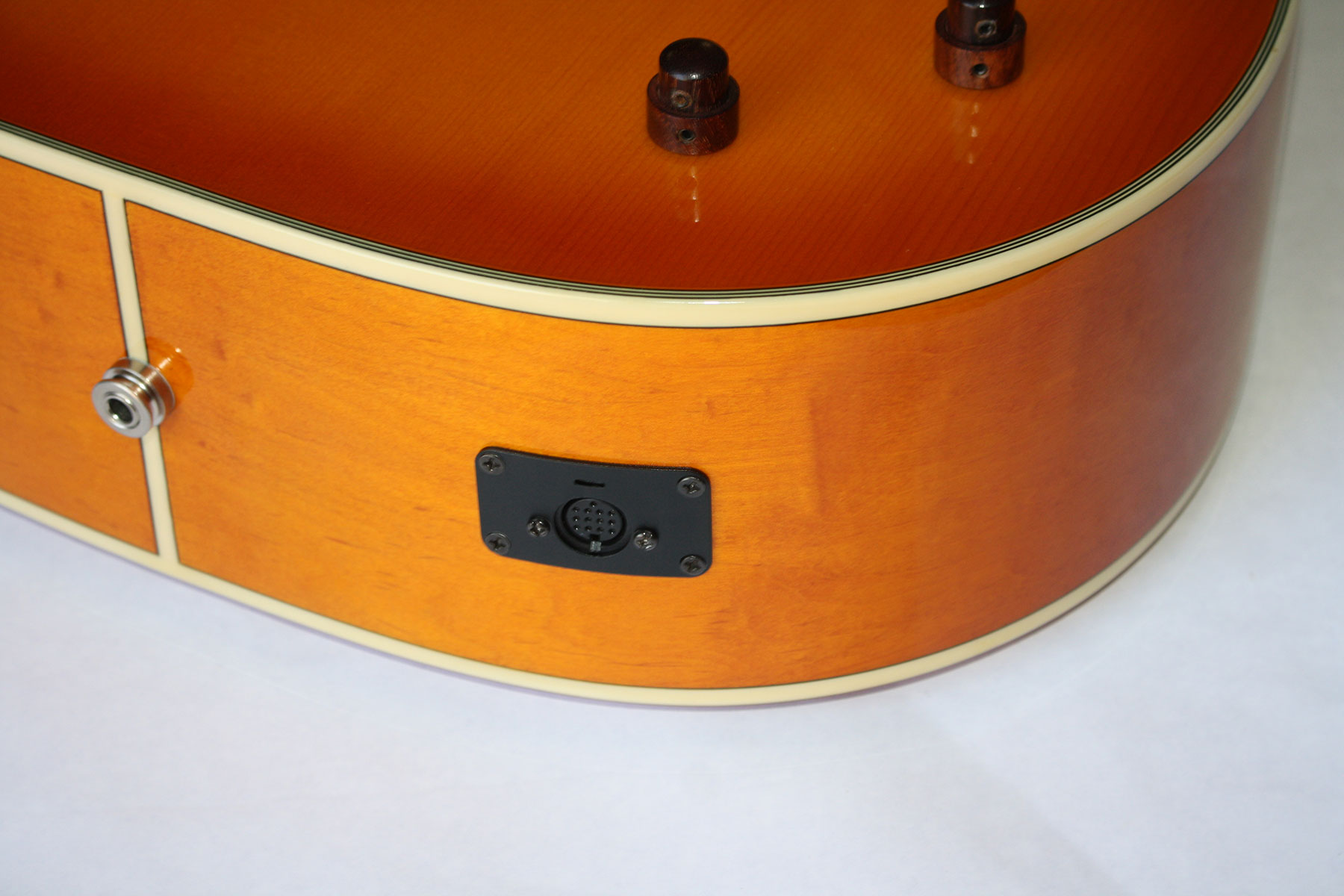

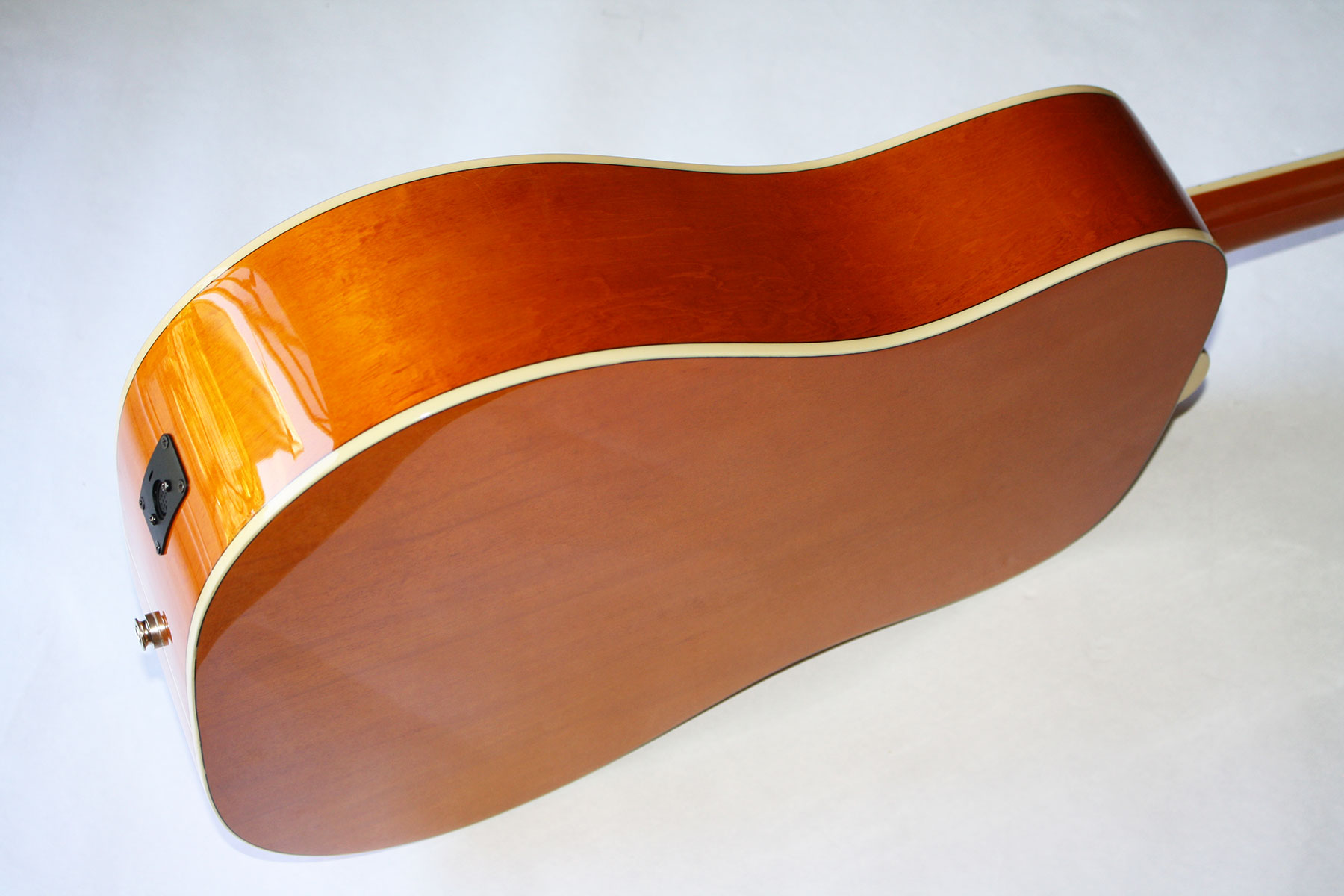

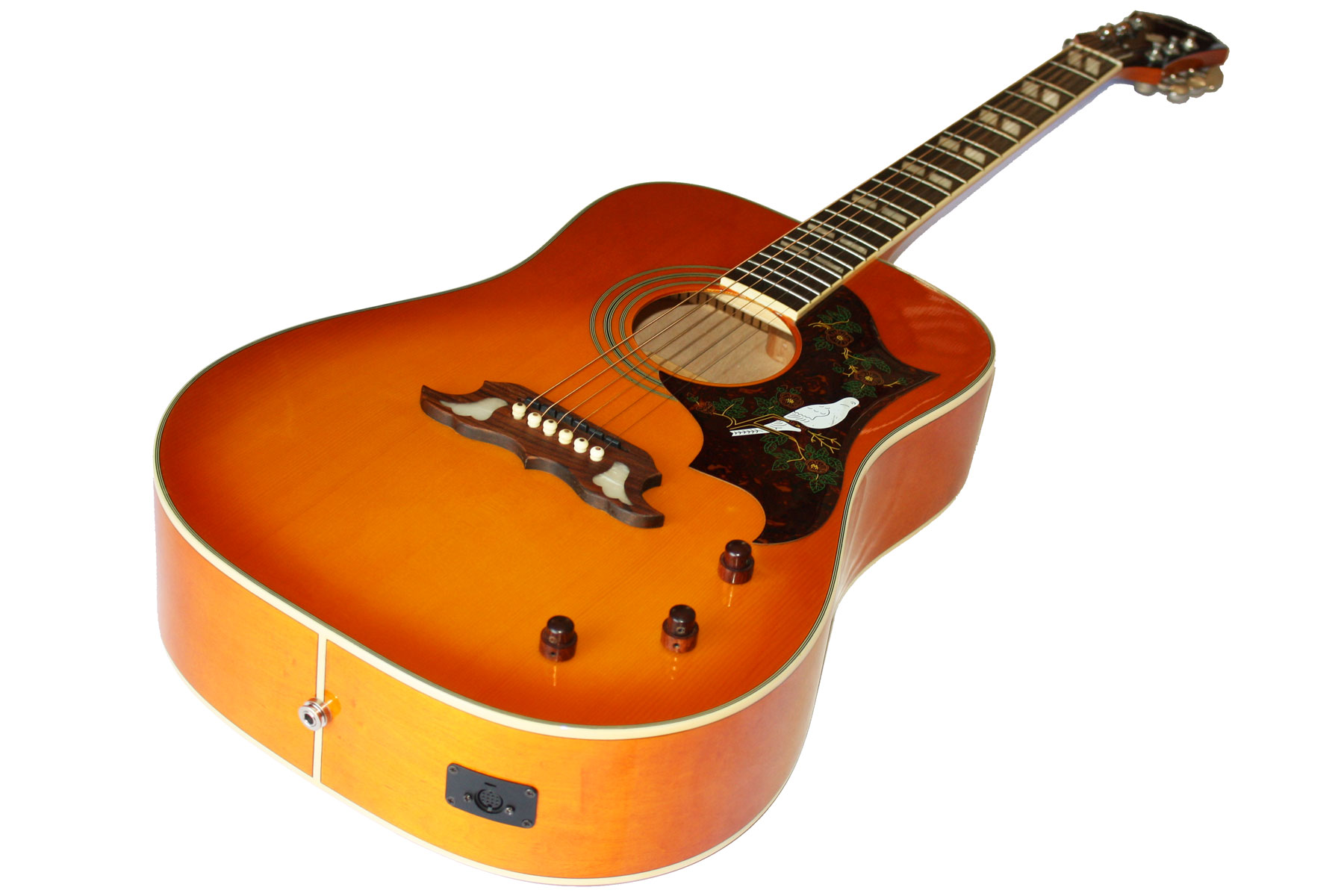

The rear strap pin has been replaced by a strap pin that also doubles as a 1/4" guitar output. This means you can use the acoustic pickup and preamp on the guitar without a Roland synthesizer.

I have found that this strap pin by itself does not do the job of securing the guitar strap unless you have a 1/4" jack plugged in, so I strongly recommend always using some kind of 1/4" connector plugged in if you plan on using the strap.

If you only want the 13-pin, hexaphonic output from the guitar to drive a synthesizer you do not have to plug anything in. I did a performance video with this guitar where I was sitting down the entire time, using only the hexaphonic output and there was nothing plugged in to the rear strap pin.

Links to more information:

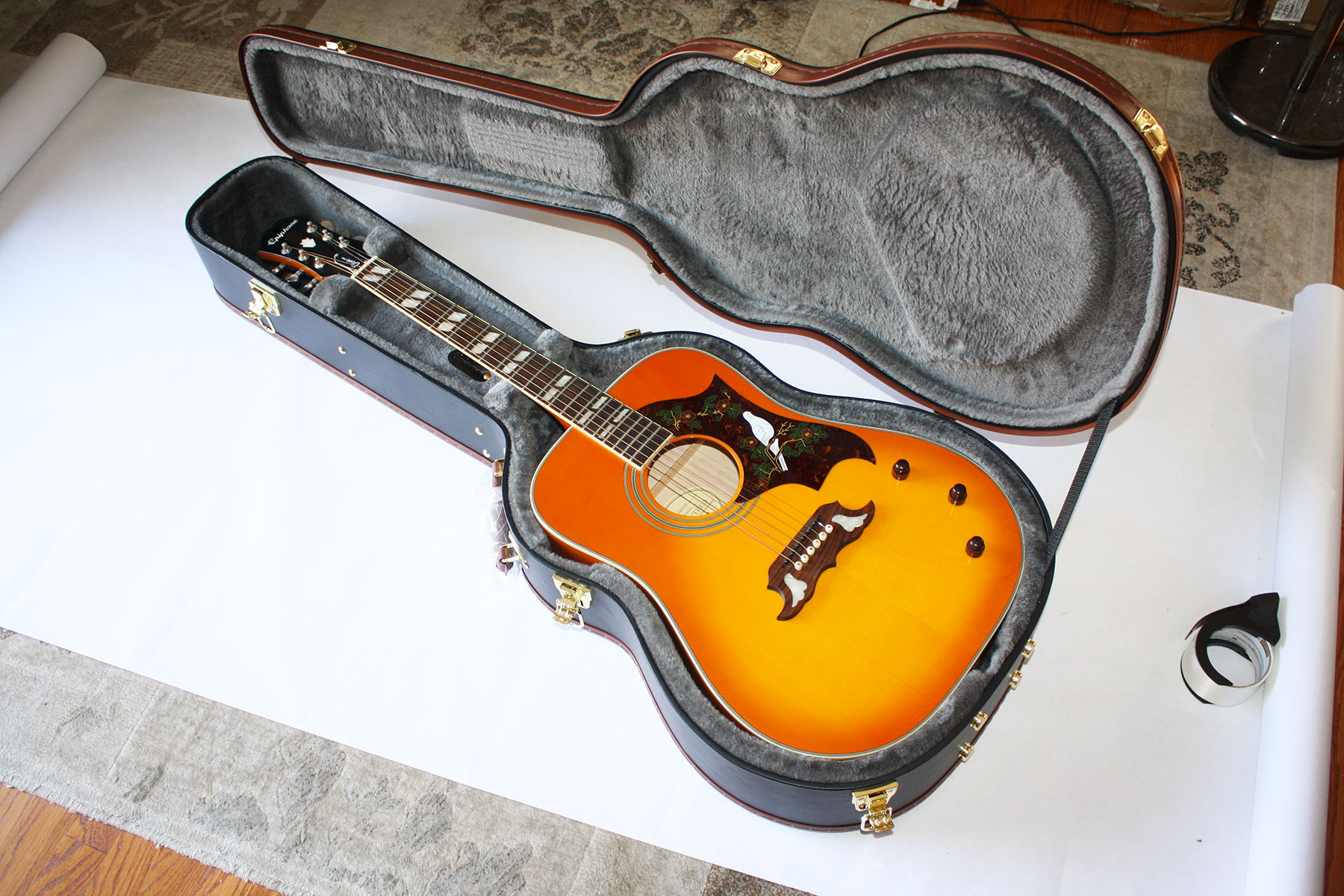

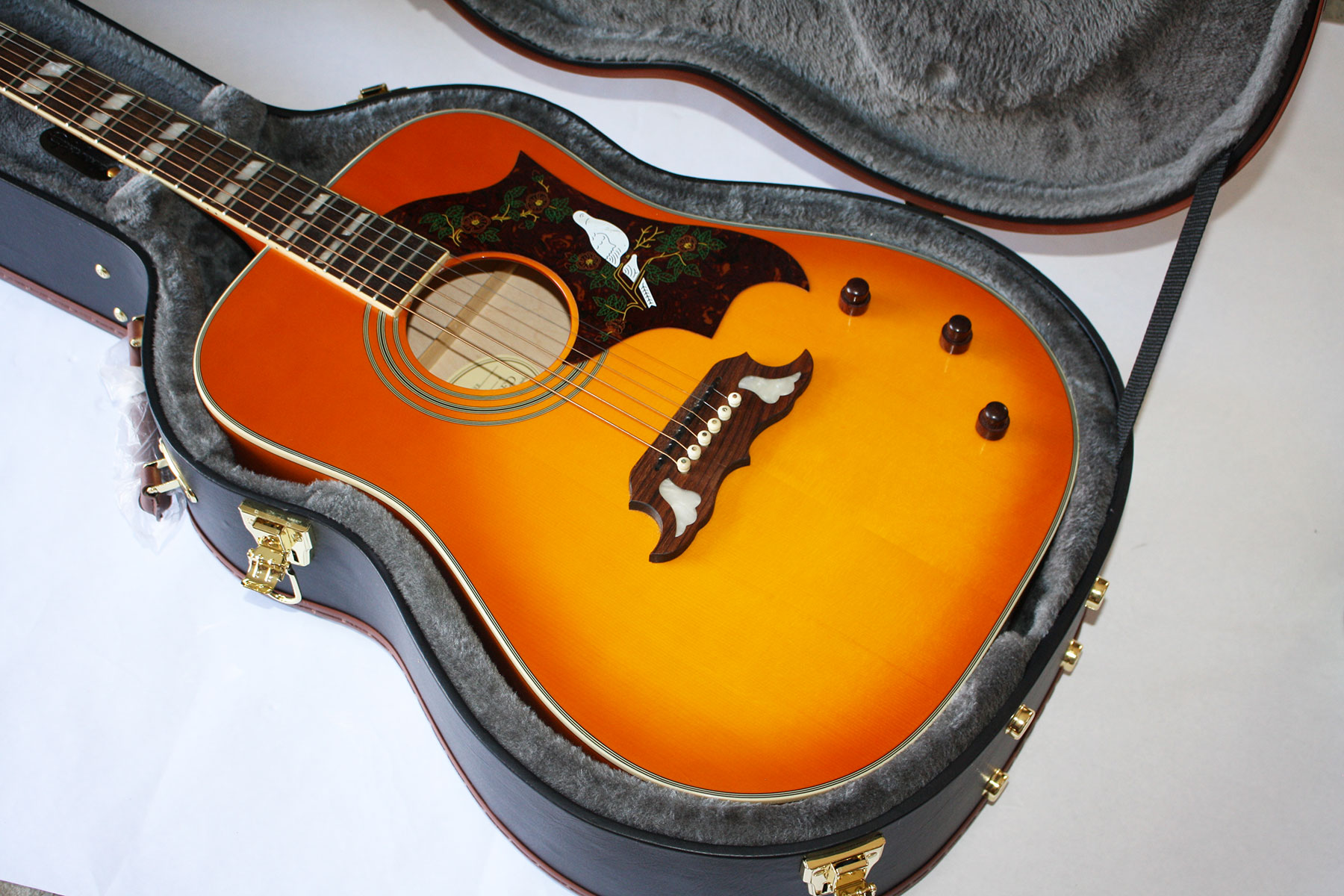

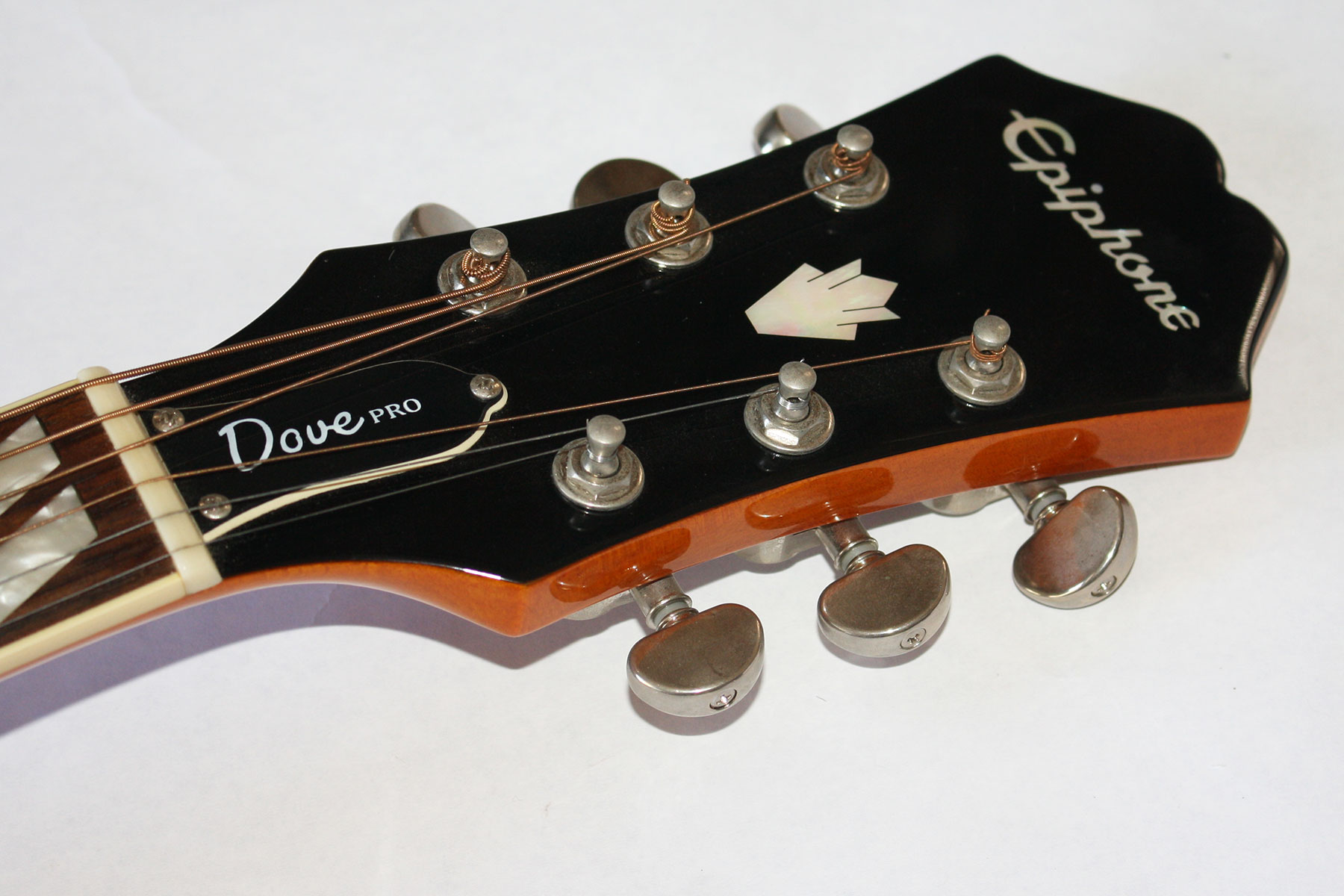

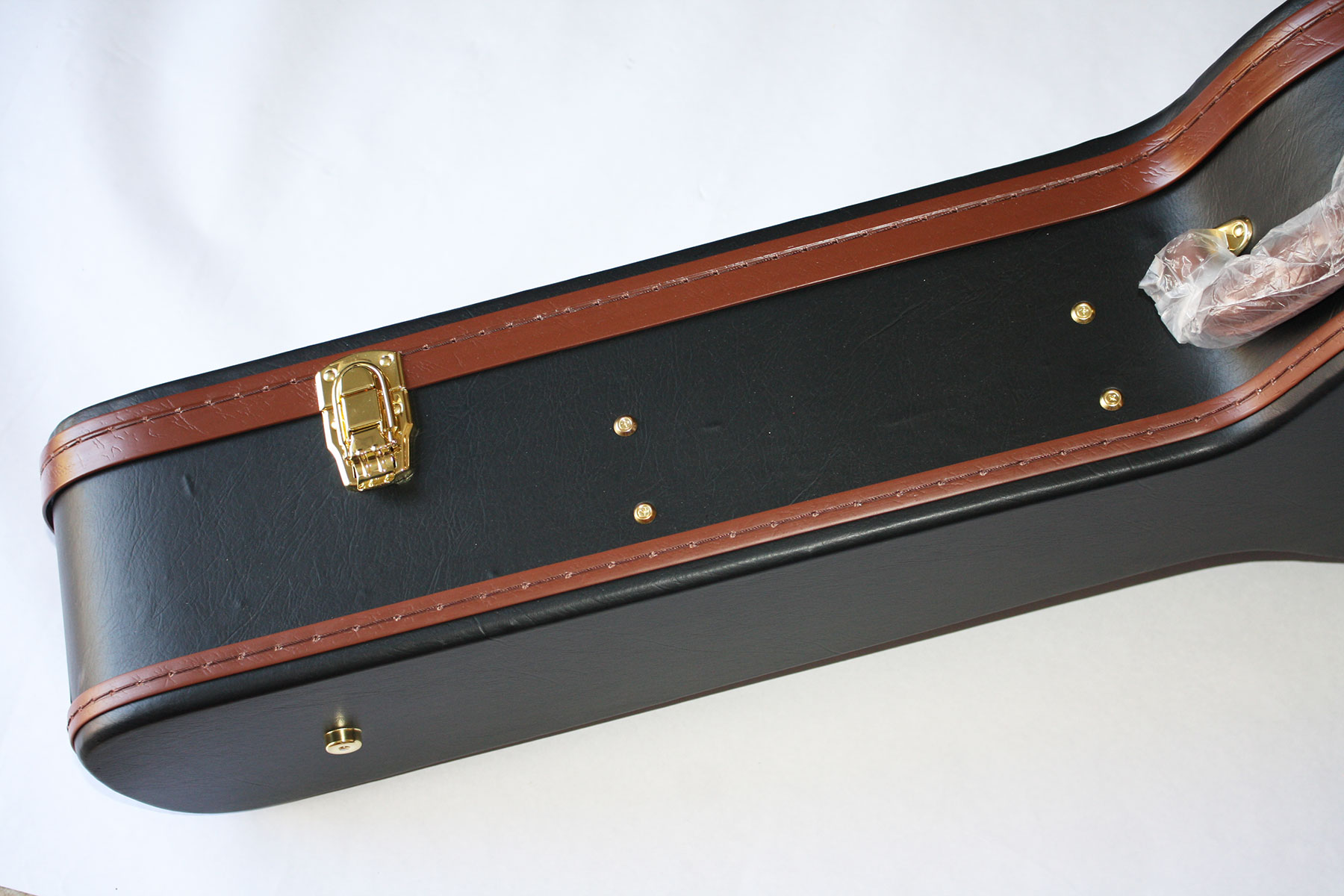

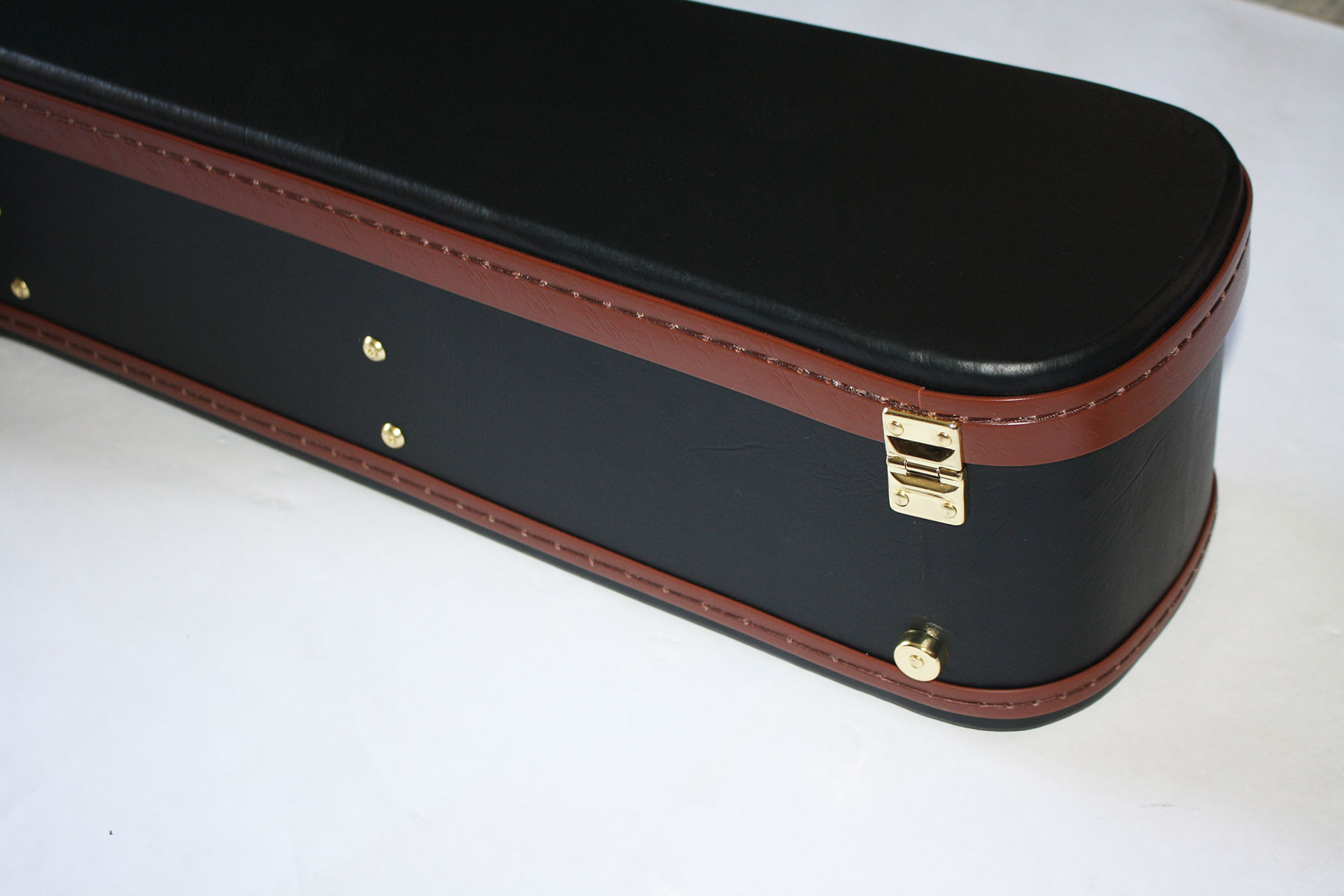

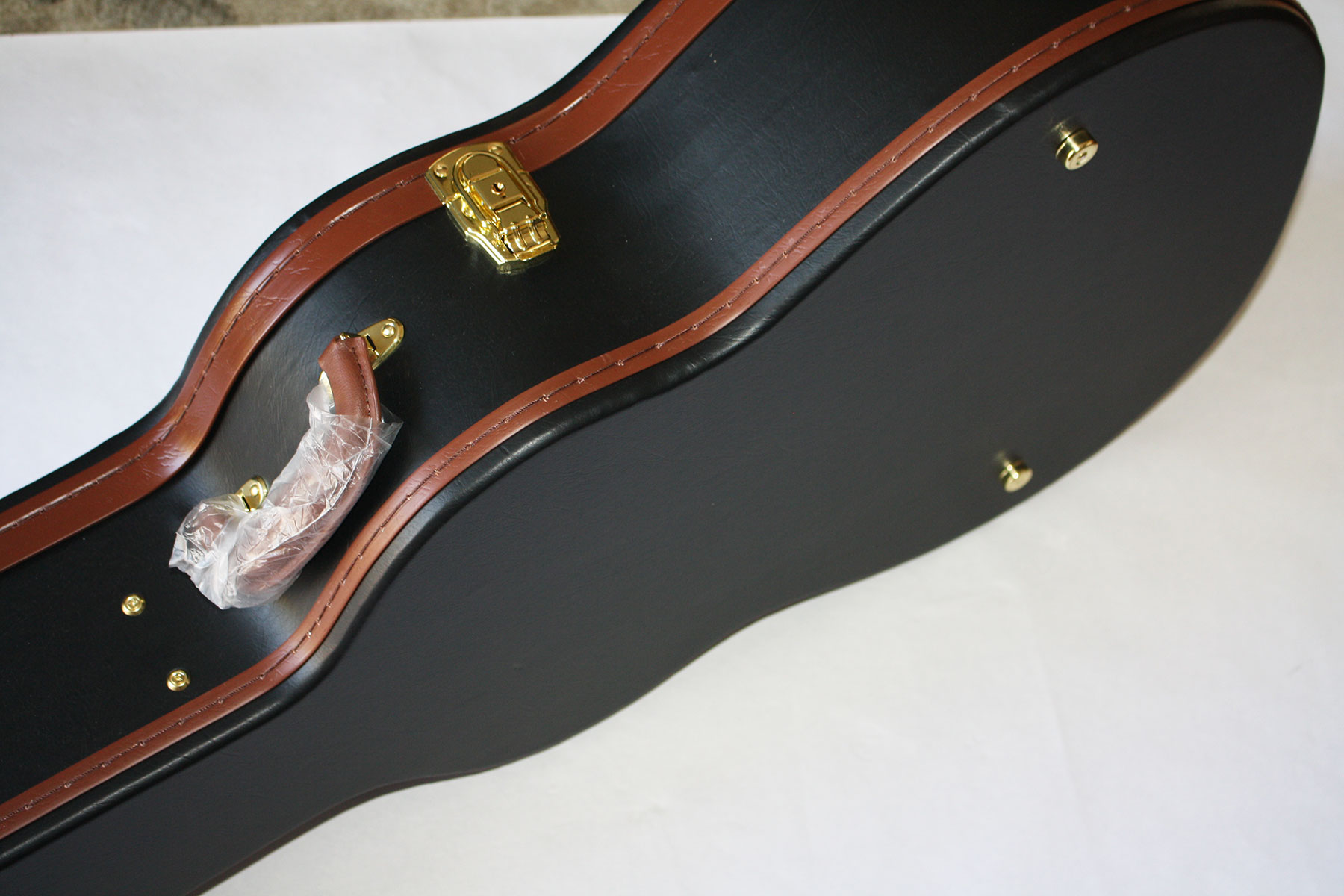

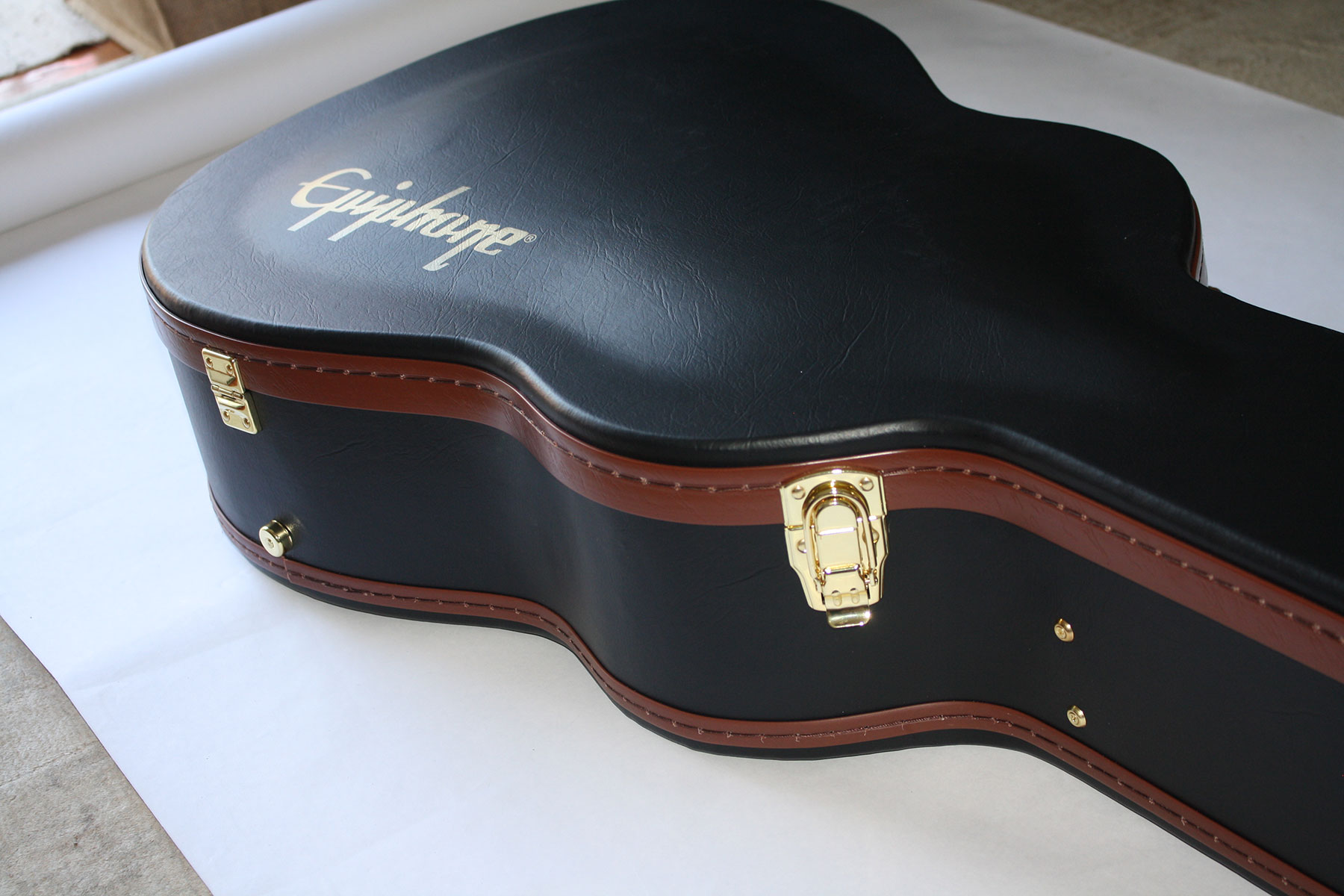

Photos:

Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit
Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit
Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit
Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit
Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit
Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit
Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit
Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit
Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit Epiphone Dove Ghost Acoustic Midi Kit
